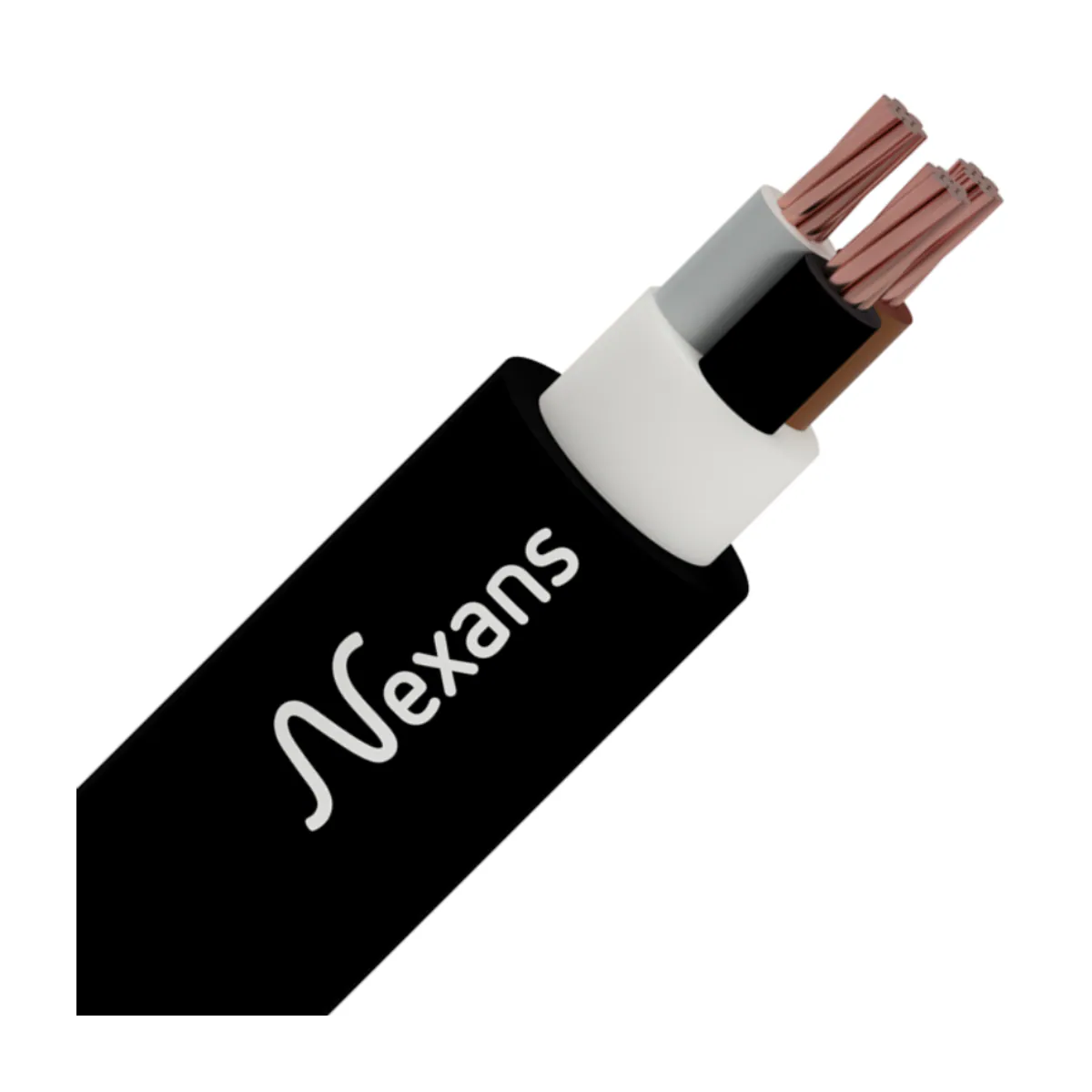

Nexans N2XH FE180 4x4 mm2 Halogen-Free Cable
- Brand: Nexans Kablo
- SKU: NEXWB0591
- Price: 16366.70 TRY + VAT · incl. VAT 19640.04 TRY
- Availability: In stock
- N2XH FE180 Cables
- Nexans Kablo N2XH FE180 Cables
- Selection guide: N2XH FE180 (E90) Fire-Resistant Power Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Nexans N2XH FE180 4x4 mm2 Halogen-Free Cable is a product in the fire-resistant cable product family of the Nexans Kablo brand. Key technical features: Core cross-section: 4x4 mm2.
| Core Cross-Section | 4x4 mm² |
|---|---|
| Conductor | Bakır; tavlanmış yuvarlak tek bakır (Class 1) |
| Flame Barrier | Mika bant |
| Insulation Material | XLPE |
| Filler | LSZH |
| Outer Sheath Material | LSZH |
| Rated Voltage | 0,6/1 kV |
| Operating Temperature | -20 °C … +90 °C |
| Short-Circuit Temperature | Max. 250 °C |
| Minimum Bending Radius | 8 x D |
| Standards | TS EN IEC 60228; TS EN IEC 60502-1 |
| Flame Retardance / Fire Performance | Alev dayanımı: TS EN IEC 60332-3-24 (CAT C); Halojensiz: TS EN IEC 60754-1/2; Duman yoğunluğu: TS EN IEC 61034-1/2; Yangına dayanıklılık: TS IEC 60331 (FE 180: yangın esnasında 180 dakika devre bütünlüğü) |
| Outer Diameter | Yaklaşık 14,5 mm (TS EN IEC 60502-1) |
| Conductor Resistance (20 °C) | Max. 4,61 Ω/km (DC) |
| Current Carrying Capacity | Havada (30 °C, tek kablo, yatay): 42 A; Toprakta (20 °C, tek kablo, toprak ısıl özdirenci 1 K.m/W, gömme derinliği 0,7 m): 59 A |
