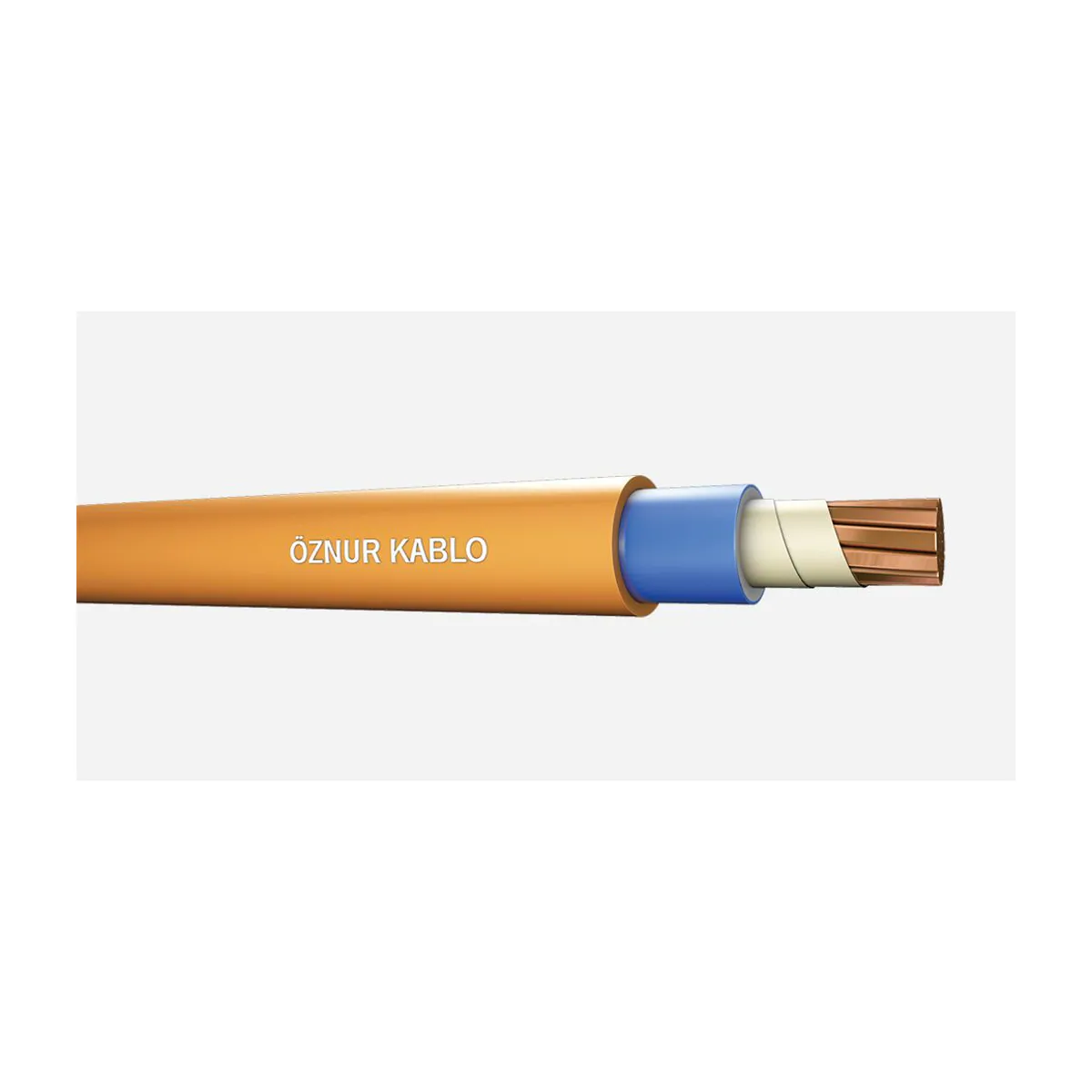

Öznur N2XH FE180 1x120 mm2 Halogen Free Cable
- Brand: Öznur Kablo
- SKU: NP-1387
- Price: 98560.00 TRY + VAT · incl. VAT 118272.00 TRY
- Availability: In stock
- N2XH FE180 Cables
- Öznur Kablo N2XH FE180 Cables
- Selection guide: N2XH FE180 (E90) Fire-Resistant Power Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Öznur N2XH FE180 1x120 mm2 Halogen Free Cable. Cable with 0.6/1 kV rated voltage, XLPE insulation and HFFR sheath. Conductor: Stranded copper conductor (rm). Halogen-free, flame-resistant; FE 180 (IEC 60331-11 insulation endurance test). Technical data: Outer diameter approx. 19.0 mm, Current carrying capacity in air (side by side): 495 A; in air (trefoil): 380 A, Conductor resistance (20 °C) Max. 0.153 Ω/km (DC), Minimum bending radius 15 x D, Operating temperature Max. 90 °C, Short-circuit temperature Max. 250 °C, Standards TS HD 604 S1, DIN - VDE 0276-604. The product is sold per meter; the minimum order is 100 meters. Stock code: NP-1387.
| Conductor | Bükülü bakır iletken (rm) |
|---|---|
| Insulation Material | XLPE |
| Outer Sheath Material | HFFR |
| Rated Voltage | 0,6/1 kV |
| Operating Temperature | Max. 90 °C |
| Short-Circuit Temperature | Max. 250 °C |
| Minimum Bending Radius | 15 x D |
| Standards | TS HD 604 S1, DIN - VDE 0276-604 |
| Flame Retardance / Fire Performance | Halojensiz, aleve dayanıklı; FE 180 (IEC 60331-11 yalıtım dayanıklılık testi) |
| Outer Diameter | Yaklaşık 19,0 mm |
| Conductor Resistance (20 °C) | Max. 0,153 Ω/km (DC) |
| Current Carrying Capacity | Havada (yan yana): 495 A; Havada (üçgen demet): 380 A |
