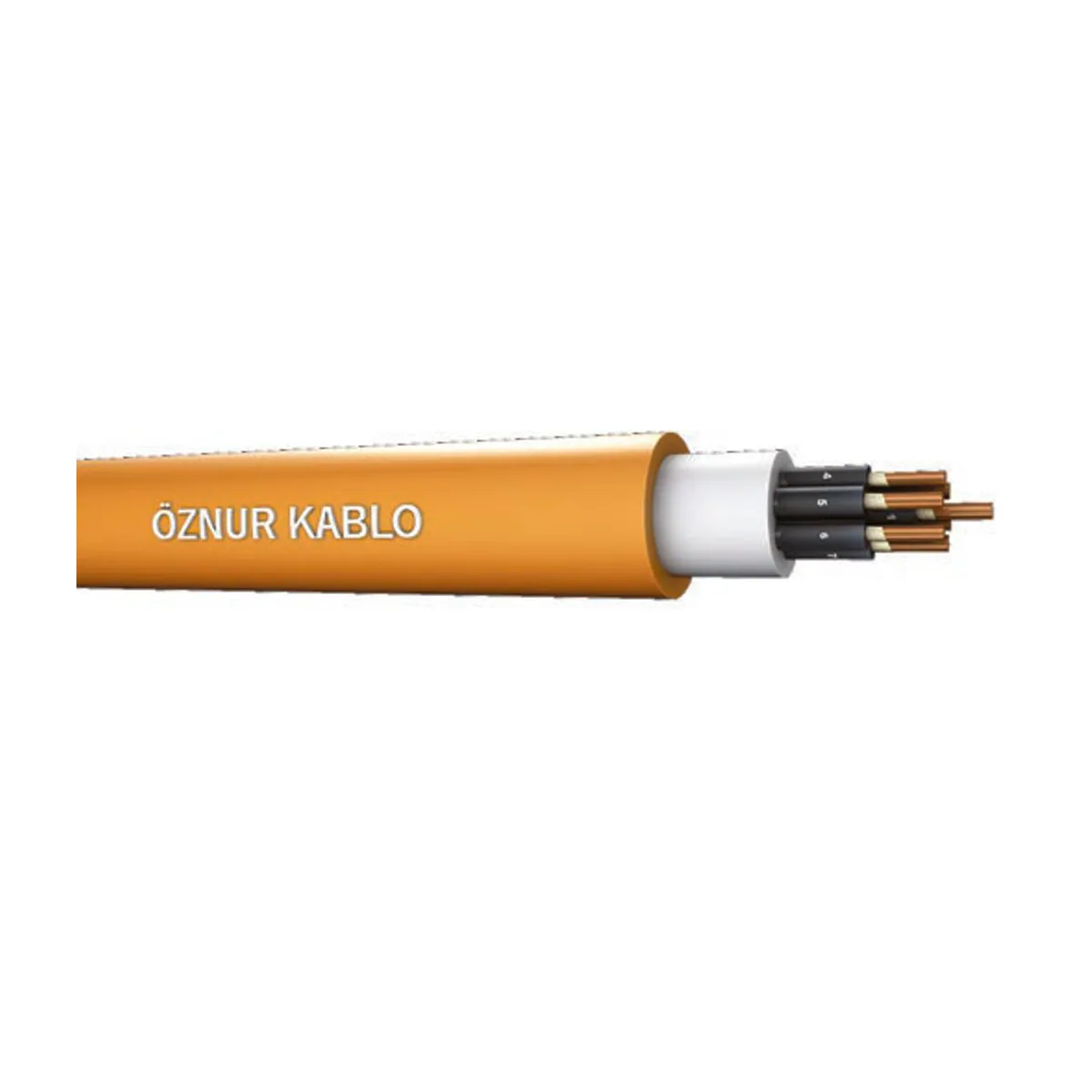

Öznur N2XH FE180 5x1.5 mm2 Halogen Free Cable
- Brand: Öznur Kablo
- SKU: NP-1426
- Price: 10458.80 TRY + VAT · incl. VAT 12550.56 TRY
- Availability: In stock
- N2XH FE180 Cables
- Öznur Kablo N2XH FE180 Cables
- Selection guide: N2XH FE180 (E90) Fire-Resistant Power Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Öznur N2XH FE180 5x1.5 mm2 Halogen Free Cable. Cable with 0.6/1 kV rated voltage, XLPE insulation and HFFR sheath. Conductor: Solid copper conductor (re). Halogen-free, flame-resistant; FE 180 (IEC 60331-11 insulation endurance test). Technical data: Outer diameter approx. 14.0 mm, Current carrying capacity in air: 23 A, Conductor resistance (20 °C) Max. 12.1 Ω/km (DC), Minimum bending radius 12 x D, Operating temperature Max. 90 °C, Short-circuit temperature Max. 250 °C, Core color code Blue-Brown-Black-Gray-Yellow/Green, Filler HFFR, Standards TS HD 604 S1, DIN - VDE 0276. The product is sold per meter; the minimum order is 100 meters. Stock code: NP-1426.
| Conductor | Tek telli bakır iletken (re) |
|---|---|
| Insulation Material | XLPE |
| Filler | HFFR |
| Outer Sheath Material | HFFR |
| Rated Voltage | 0,6/1 kV |
| Operating Temperature | Max. 90 °C |
| Short-Circuit Temperature | Max. 250 °C |
| Minimum Bending Radius | 12 x D |
| Standards | TS HD 604 S1, DIN - VDE 0276 |
| Flame Retardance / Fire Performance | Halojensiz, aleve dayanıklı; FE 180 (IEC 60331-11 yalıtım dayanıklılık testi) |
| Core Colour Code | Mavi-Kahverengi-Black-Grey-Sarı/Yeşil |
| Outer Diameter | Yaklaşık 14,0 mm |
| Conductor Resistance (20 °C) | Max. 12,1 Ω/km (DC) |
| Current Carrying Capacity | Havada: 23 A |
