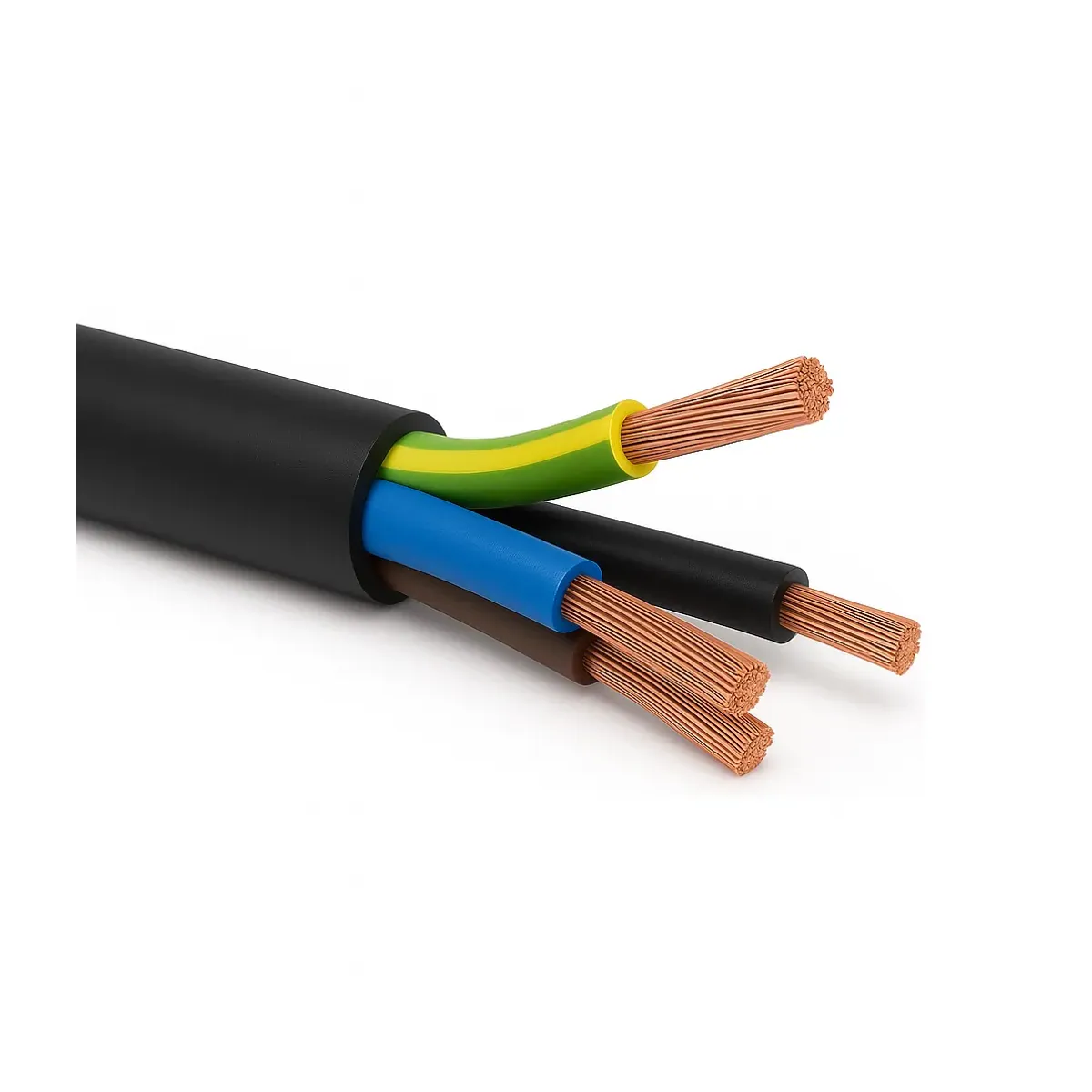

Öznur TTR 4x1.5 mm2 H05VV-F Black Cable
- Brand: Öznur Kablo
- SKU: NP-1180
- Model: Siyah
- Price: 5502.10 TRY + VAT · incl. VAT 6602.52 TRY
- Availability: In stock
- TTR Cables
- Öznur Kablo TTR Cables
- Selection guide: TTR Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Öznur TTR 4x1.5 mm2 H05VV-F Black Cable. TTR cables are flexible multi-core connection cables with PVC insulation and sheath; they are also referred to as H05VV-F. Technical data: Core Cross-Section 4x1.5mm2, Color Black. The product is sold per meter; the minimum order is 100 meters. Stock code: NP-1180.
| Core Cross-Section | 4x1,5 mm² |
|---|---|
| Color | Black |
| Conductor | Fleksibel bakır iletken |
| Insulation Material | PVC |
| Core Colour Code | Mavi-Kahverengi-Black-Grey |
| Outer Sheath Material | PVC |
| Rated Voltage | 300/500 V |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Minimum Bending Radius | 6 x D (D: kablo dış çapı) |
| Conductor Resistance (20 °C) | Max. 13,3 Ω/km (DC) |
| Standards | TS EN 50525-2-11, VDE 0281, BS 6500, IEC 60227 |
| Flame Retardance / Fire Performance | Yangına tepki: Eca (TS EN 50575:2014+A1:2016) |
| Outer Diameter | 8,8 mm (yaklaşık) |
| Current Carrying Capacity | Havada: 16 A |
