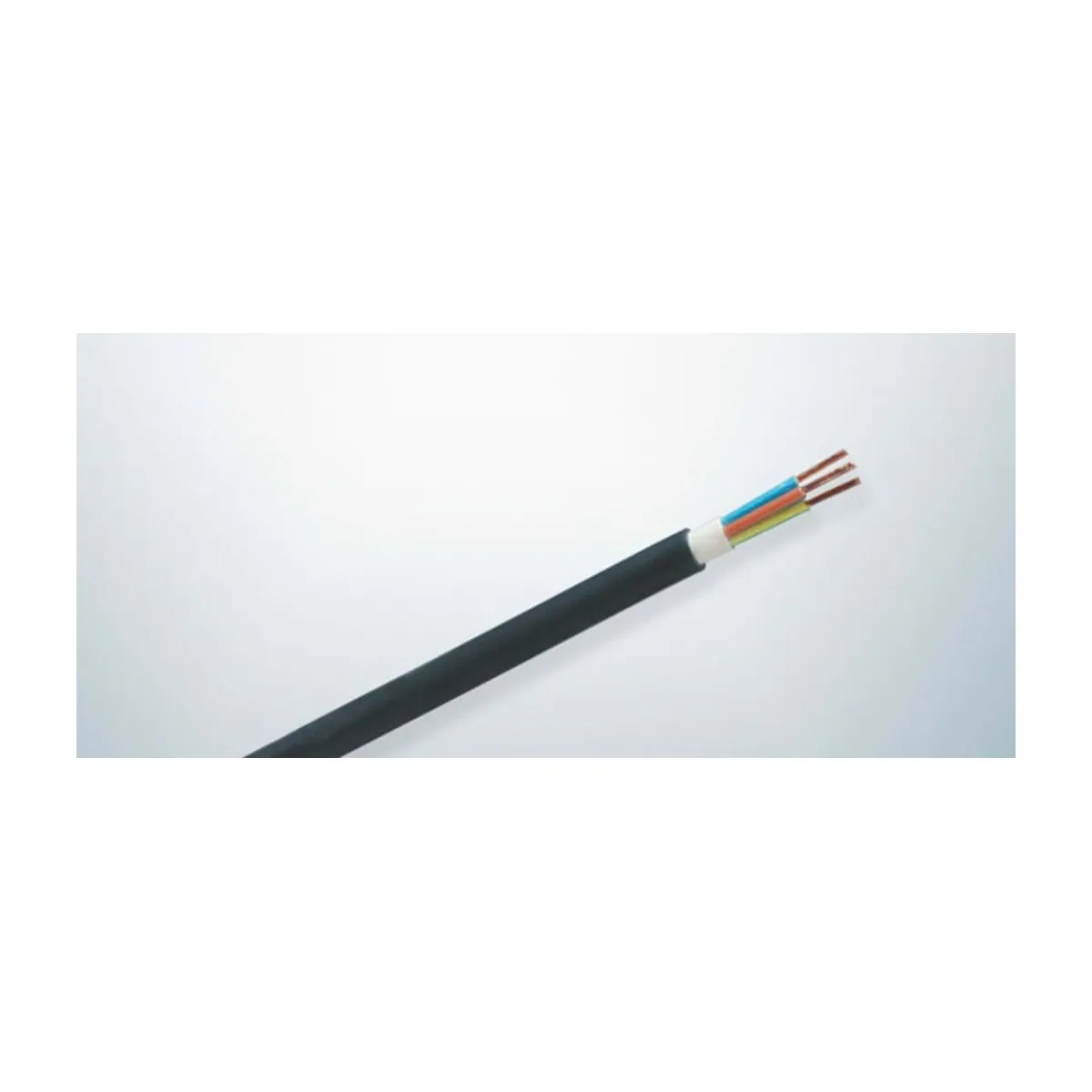

Prysmian N2XH FE180 4x70 mm2 Halogen Free Cable
- Brand: Prysmian Kablo
- SKU: PRYWB0428
- Price: 244859.70 TRY + VAT · incl. VAT 293831.64 TRY
- Availability: In stock
- N2XH FE180 Cables
- Prysmian Kablo N2XH FE180 Cables
- Selection guide: N2XH FE180 (E90) Fire-Resistant Power Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Prysmian N2XH FE180 4x70 mm2 Halogen-Free Cable is a product in the fire-resistant cable product family of the Prysmian Kablo brand. Key technical features: Core cross-section: 4x70 mm2.
| Conductor | Tek veya çok telli bakır iletken |
|---|---|
| Separator Tape | Özel ayırıcı tabaka |
| Insulation Material | Özel sentetik yalıtkan |
| Filler | Özel dolgu |
| Outer Sheath Material | Özel sentetik dış kılıf |
| Outer Sheath Colour | Portakal |
| Rated Voltage | 0,6/1 kV |
| Operating Temperature | Max. 90 °C |
| Short-Circuit Temperature | Max. 250 °C |
| Installation Temperature | Min. 0 °C |
| Standards | TS HD 604 S1 5G |
| Flame Retardance / Fire Performance | FR (Aleve Dayanıklılık) Testi: IEC 60332-1-2 ve IEC 60332-3-24 Cat.C; Yanan Damlacık Testi: IEC 60332-1-3; LS (Düşük Duman) Testi: IEC 61034-1/2; HF (Halojenden Arındırılmışlık) Testi: IEC 60754-1/2; FE (Akım İletme) Testi: IEC 60331-21 (IEC 60331-21acc. to alev altında 180 dakika işlevini devam ettirir) |
| Outer Diameter | 35,5 mm (yaklaşık) |
| Conductor Resistance (20 °C) | 0,268 Ω/km (DA) |
| Current Carrying Capacity | Yüzey üzerinde: 246 A (30 °C ortam sıcaklığında) |
