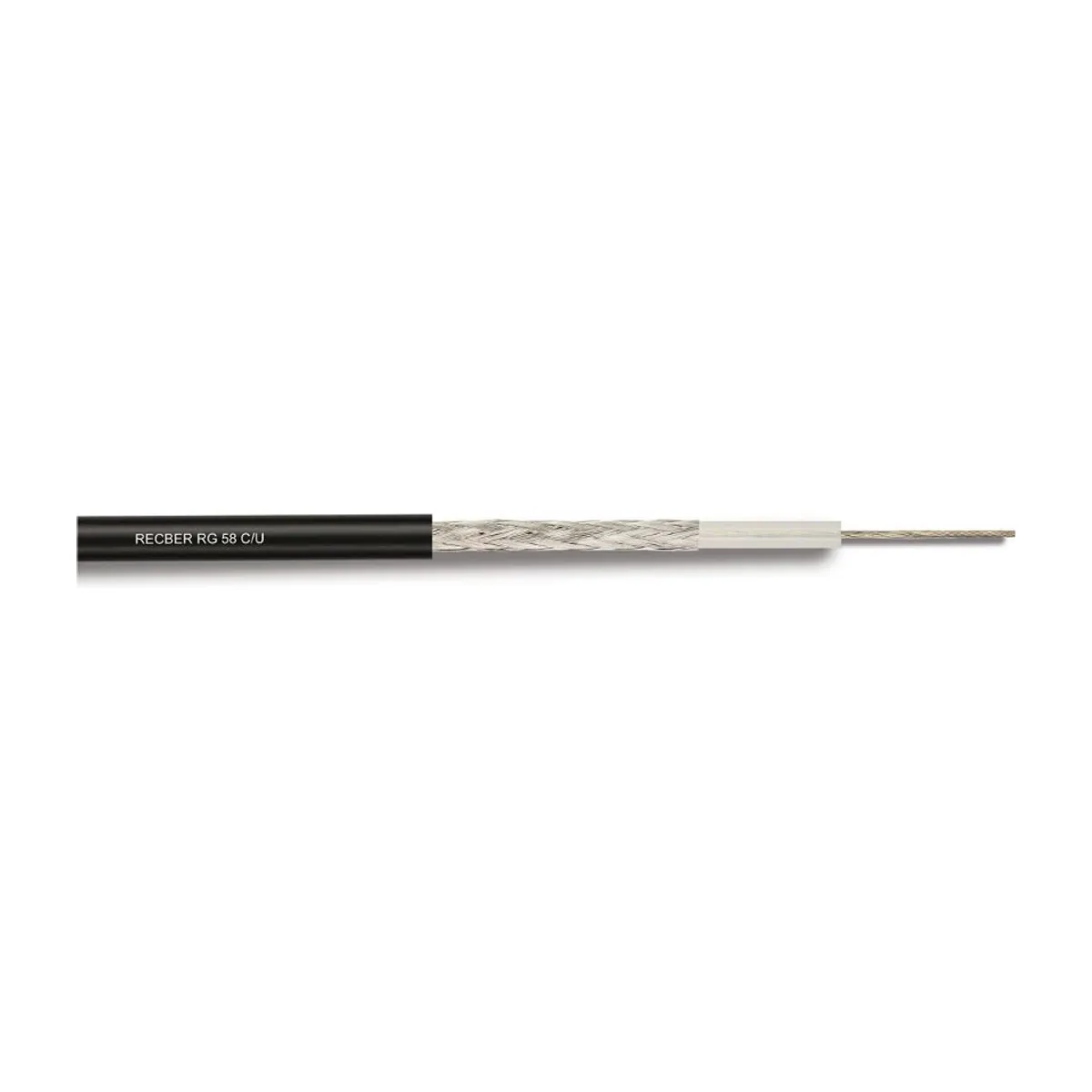

Reçber RG 58 C /U PVC Cable
- Brand: Reçber Kablo
- SKU: 305052
- MPN: 305052
- Price: 4165.00 TRY + VAT · incl. VAT 4998.00 TRY
- Availability: In stock
- 50 Ohm Coaxial Cables
- Selection guide: Coaxial Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber RG 58 C /U PVC Cable is a product in the Reçber Kablo brand's coaxial cable product family.
| Conductor | Bükülü kalaylı bakır tel, Ø 19x0,18mm |
|---|---|
| Insulation Material | LDPE, Ø 2,95mm (70°C, EN 50290-2-23) |
| Cable Shield | Kalaylı bakır tel örgü, %95 kapama |
| Outer Sheath Material | PVC (TM51 70°C, EN 50290-2-22) |
| Outer Sheath Colour | Black (RAL 9011) |
| Operating Voltage | Max. 2000 V |
| Test Voltage | 5000 V |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Insulation Resistance | Min. 2 GΩ·km |
| Standards | MIL-C-17F, MIL-C-17G |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2 |
| Outer Diameter | 4.95 mm |
| Copper Weight | 17 kg/km |
| Impedance | 50 ± 3 Ω |
| Capacitance | 101 ± 2 pF/m |
| Velocity of Propagation | %66 ± 2 |
| Attenuation (20 °C, max.) | 1 MHz: 1,33 dB/100m; 10 MHz: 4,41 dB/100m; 50 MHz: 10,69 dB/100m; 100 MHz: 16,00 dB/100m; 200 MHz: 24,38 dB/100m; 400 MHz: 38,00 dB/100m; 700 MHz: 55,39 dB/100m; 900 MHz: 66,00 dB/100m; 1000 MHz: 71,11 dB/100m |
