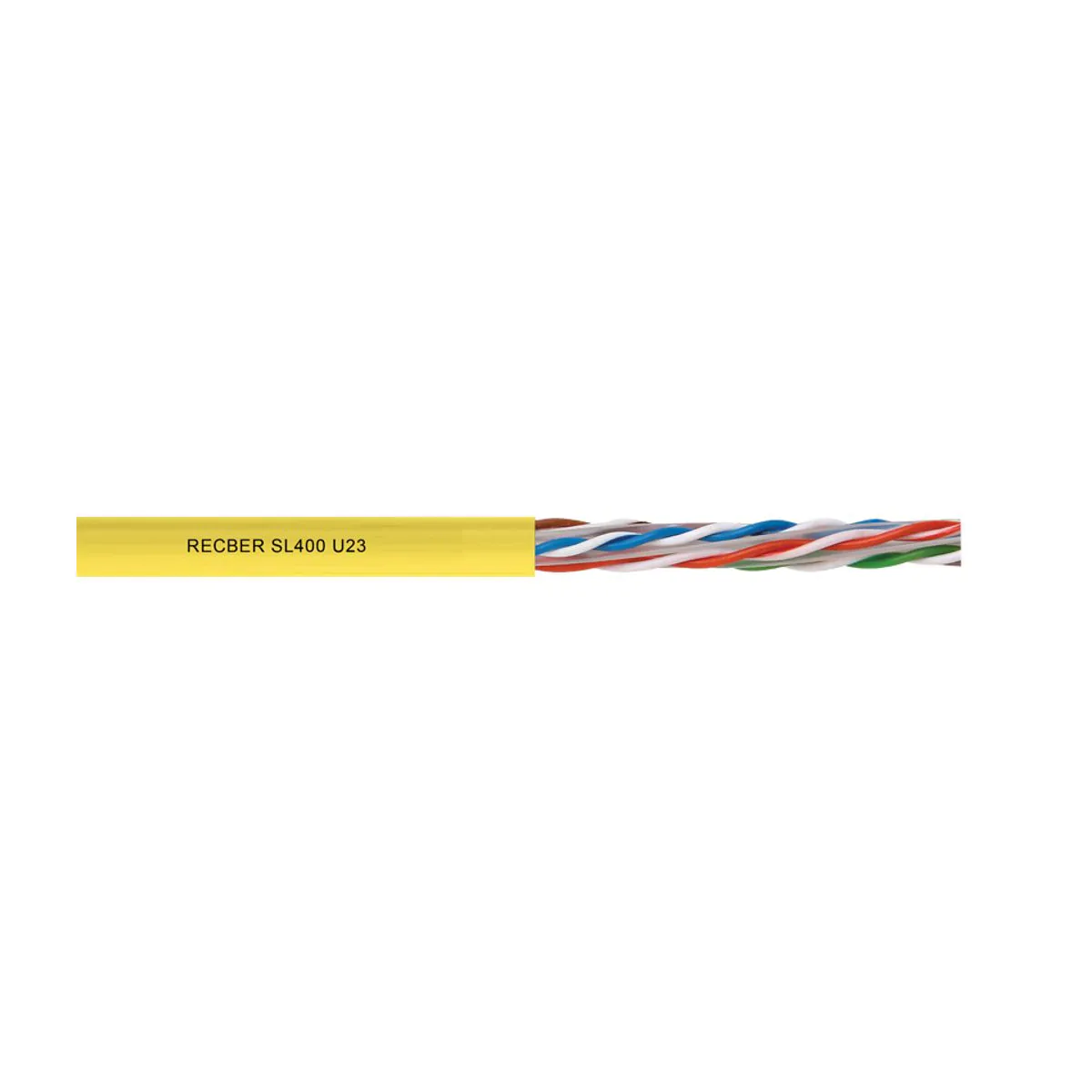

Reçber SL400 U23 PE Category 6 U/UTP 4x2x23AWG Cable
- Brand: Reçber Kablo
- SKU: 506025
- MPN: 506025
- Price: 2835.60 TRY + VAT · incl. VAT 3402.72 TRY
- Availability: In stock
- CAT6 Cables
- Reçber Kablo CAT6 Cables
- Selection guide: CAT6 Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber SL400 U23 PE Category 6 U/UTP 4x2x23AWG Cable is a Reçber CAT6 U/UTP Ethernet data cable product used in Ethernet and local area network connections. Product features Model: SL400 U23 Category: Category 6 Shielding: U/UTP Outer sheath: PE Core size: 4x2x23 AWG The image is the manufacturer's representative family image; select the product according to the model and size information above.
| Core Cross-Section | 4x2x23 AWG |
|---|---|
| Cable Type | CAT6 U/UTP |
| Conductor | Elektrolitik bakır tel, Ø 23AWG |
| Core Colour Code | TIA 568 izole renk kodlamasına uygun |
| Cross Separator | PE |
| Operating Temperature | Fixed: -20 °C … +60 °C; Flexible: 0 °C … +50 °C |
| Minimum Bending Radius | Fixed: 4 x D; Flexible: 8 x D |
| Conductor Resistance | Max. 85 Ω/km |
| Capacitance | Nom. 50 pF/m |
| Capacitance Unbalance | Max. 1600 pF/km |
| Impedance | 100 ± 5 Ω @100MHz |
| Velocity of Propagation | 67-69% |
| Test Voltage | 1000 V |
| Standards | ISO/IEC 11801 2nd ed., IEC 61156-5, EN 50173-1, EN 50288-6-1, ANSI EIA/TIA 568-C.2 |
| Outer Sheath Material | PE, 80°C, EN 50290-2-24 |
| Outer Sheath Colour | Black (RAL 9011) |
| Outer Diameter | 6 mm |
| Copper Weight | 18 kg/km |
