Reçber SL500 F/F23 PE Category 6A F/FTP 4x2x23AWG Cable
- Brand: Reçber Kablo
- SKU: 506053
- MPN: 506053
- Price: 4277.20 TRY + VAT · incl. VAT 5132.64 TRY
- Availability: In stock
- CAT6a Cables
- Reçber Kablo CAT6a Cables
- Selection guide: CAT6a Cables Selection Guide: Technical Criteria & Application Standards
- Calculate cable current-carrying capacity
- Calculate voltage drop

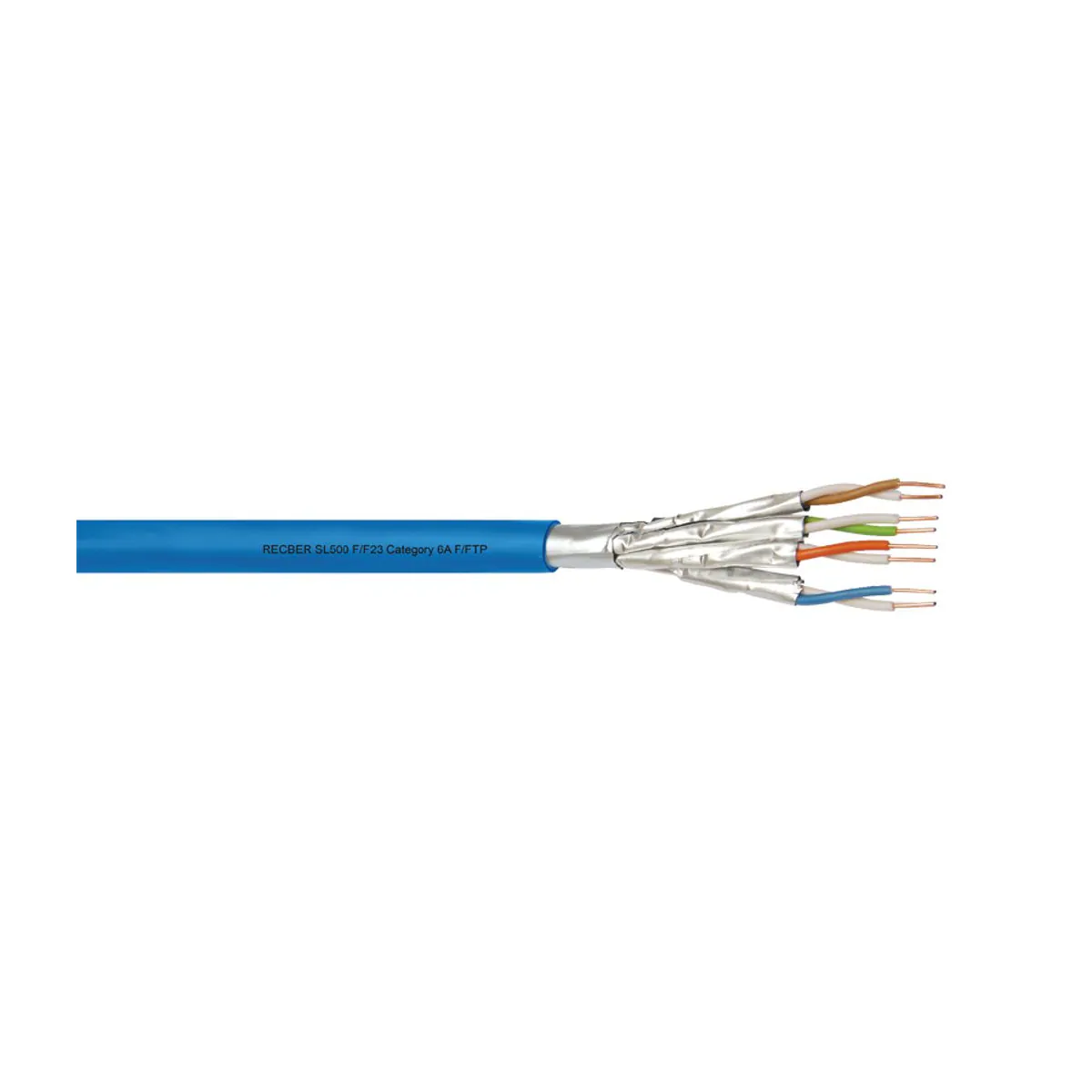

Reçber SL500 F/F23 PE Category 6A F/FTP 4x2x23AWG Cable is a Reçber CAT6A F/FTP Ethernet data cable product used in Ethernet and local area network connections. Product features Model: SL500 F/F23 Category: Category 6A Shielding: F/FTP Outer sheath: PE Core size: 4x2x23 AWG The image is the manufacturer's representative family image; select the product according to the model and size information above.
| Conductor | Elektrolitik bakır tel, Ø 23AWG |
|---|---|
| Insulation Material | Fiziksel köpüklü PE (70°C, EN 50290-2-23) |
| Core Colour Code | TIA 568 izole renk kodlamasına uygun |
| Cable Shield | Ekran (Çift): Al-Pet bant min. %100 kapama; Toprak teli: Kalaylı bakır tel toprak teli, Ø 26AWG; Ekran: Al-Pet bant min. %100 kapama |
| Outer Sheath Material | PE (80°C, EN 50290-2-24) |
| Outer Sheath Colour | Black (RAL 9011) |
| Operating Voltage | Max. 125 V |
| Test Voltage | 1000 V |
| Operating Temperature | Fixed: -20 °C … +60 °C; Flexible: 0 °C … +50 °C |
| Minimum Bending Radius | Fixed: 4 x D; Flexible: 8 x D |
| Conductor Resistance | Max. 75 Ω/km |
| Standards | ISO/IEC 11801 2nd ed., IEC 61156-5, EN 50173-1, EN 50288-10-1, ANSI EIA/TIA 568-C.2 |
| Outer Diameter | 7 mm |
| Copper Weight | 21 kg/km |
| Impedance | 100 ± 5 Ω @100MHz |
| Capacitance | Nom. 42 pF/m |
| Velocity of Propagation | 78-80% |
| Capacitance Unbalance | Max. 1600 pF/km |
| Segregation Class | c (EN 50174-2) |
| Transfer Impedance | Class 2 |
| Resistance Unbalance | Max. 2% |
| Propagation Delay | Max. 430 ns/100m |
| Tensile Strength | Max. 110 N |
| Crush Resistance | Min. 1000 N/10cm |
| Shock resistance | Min. 10 darbe |
| Coupling Attenuation | Tip II |
| TCL | Min. Seviye 2 |
