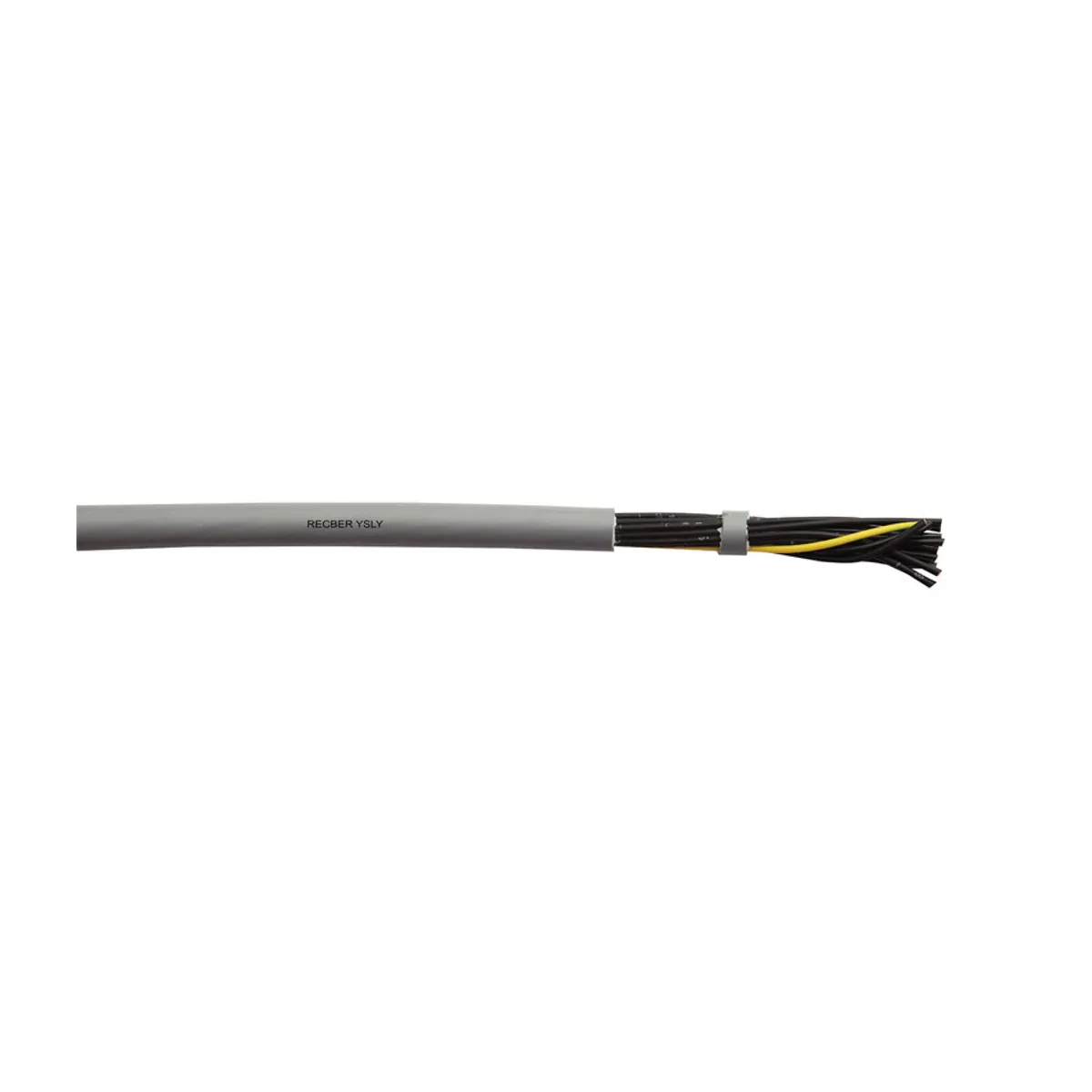

Reçber YSLY-JZ 12x1.5 mm2 Cable
- Brand: Reçber Kablo
- SKU: 217192
- MPN: 217192
- Price: 21953.80 TRY + VAT · incl. VAT 26344.56 TRY
- Availability: In stock
- YSLY Control Cables
- Reçber Kablo YSLY Control Cables
- Selection guide: YSLY Control Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber YSLY-JZ 12x1.5 mm2 Cable is a product in the Reçber Kablo brand's YSLY control cable product family. Key technical features: Cable type: YSLY; Core cross-section: 12x1.5 mm2.
| Core Cross-Section | 12x1,5 mm² |
|---|---|
| Cable Type | YSLY |
| Conductor | Stranded copper wire, Class 5, IEC 60228 |
| Insulation Material | PVC, TI2 EN 50363-3 |
| Core Colour Code | EN 50334 izole kodlamasına uygun; toprak koruma damarlı (sarı/yeşil), siyah damar beyaz numara kodlu |
| Outer Sheath Material | PVC, TM2 EN 50363-4-1 |
| Outer Sheath Colour | RAL 7001 Grey |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: 0 °C … +50 °C |
| Minimum Bending Radius | Fixed: 7,5 x D; Flexible: 15 x D |
| Insulation Resistance | Min. 20 MΩ·km |
| Test Voltage | 2500 V |
| Operating Voltage | Max. 300/500 V |
| Standards | TSE K 373, EN 50525-2-51 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2 |
| Conductor Resistance | Max. 13,3 Ω/km |
| Outer Diameter | 13.2 mm |
| Copper Weight | 160 kg/km |
