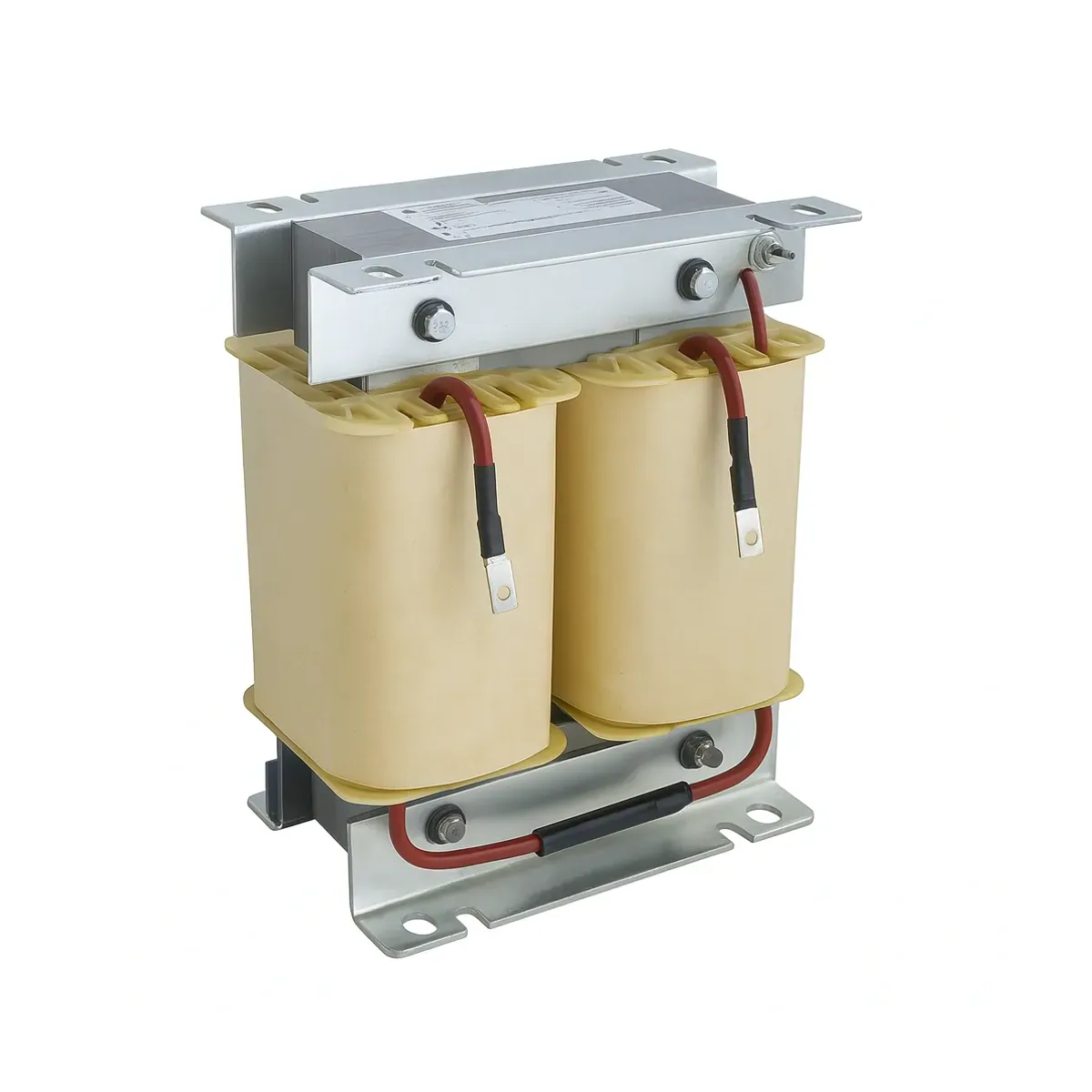

Tibcon 16.67 kVAr Single-Phase Shunt Reactor - TBSR5414
- Brand: Tibcon
- SKU: ŞM-2316,67
- MPN: TBSR5414
- Price: 22393.95 TRY + VAT · incl. VAT 26872.74 TRY
- Availability: In stock
- Single-Phase Shunt Reactors
- Tibcon Single-Phase Shunt Reactors
- Selection guide: Single-Phase Shunt Reactors Selection Guide: Technical Criteria & Application Standards
Tibcon 16.67 kVAr Single-Phase Shunt Reactor - TBSR5414. Single-Phase Shunt Reactors are used to balance the capacitive effect of long cables, UPS systems and unloaded capacitors. Technical data: Voltage 230V, Power 16.67 kVAr. Stock code: ŞM-2316,67.
| Voltage | 230 V |
|---|---|
| Power | 16.67 kVAr |
| Current | 72.5 A |
| Inductance | 10,3 mH |
| Thermal Protection | 120C (NC kontak) |
| Connection Type | Pabuç |
| Product Net Weight | 45 kg |
| Dimensions | 280 x 380 x 240 mm (A x B x C, TİP2 çizimi) |
| Standards | EN 61558-1, EN 61558 2-20, EN 60289 ve EN60076-6 |
| Frequency | 50 Hz (60 Hz Opsiyonel) |
| Inductance Tolerance | %3 |
| Magnetic Circuit | Yüksek manyetik geçirkenlikli 0,35 mm silisli laminasyon |
| IP Rating | IP00 |
| Relative Humidity | %95 Yoğunlaşmayan (DIN 40040) |
| Maximum Operating Altitude Permissible | 0–2000 m |
| Operating Temperature | -10 °C … +40 °C |
