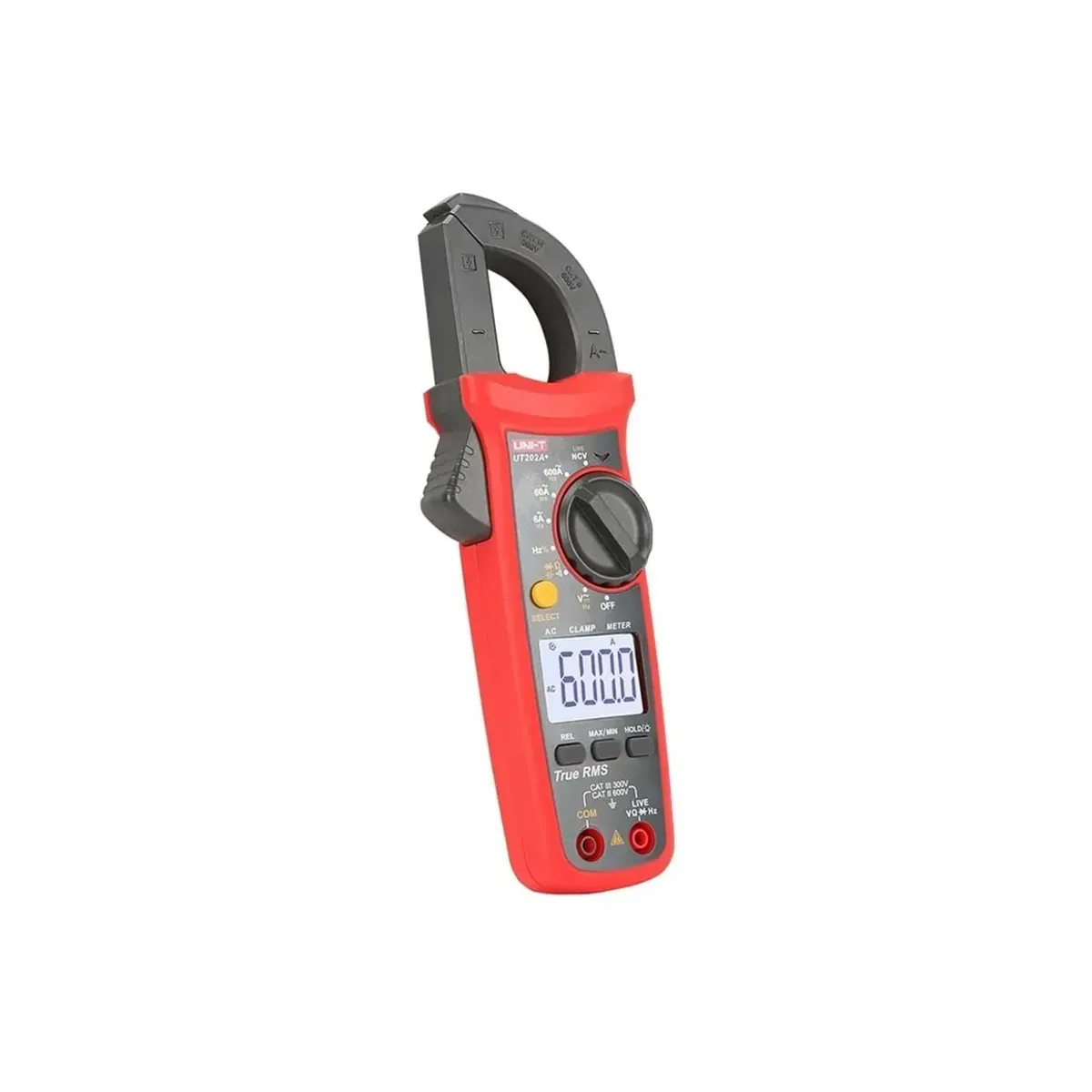

Unit UT202A+ 600A AC Clamp Meter
- Brand: Unit
- SKU: UT202A+
- MPN: UT202A+
- Price: 1142.04 TRY + VAT · incl. VAT 1370.45 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT202A+ 600A AC Clamp Meter. AC Current Measurement: 600A (accuracy: ±(2%+10)). AC Voltage Measurement: 600V (accuracy: ±(0.8%+5)). DC Voltage Measurement: 600V (accuracy: ±(0.5%+2)). Display Count: 6000. AC Current Frequency Measurement: 50Hz~100Hz (accuracy: ±(1%+5)). AC Voltage Frequency Measurement: 10Hz~10kHz (accuracy: ±(1%+5)). Resistance Measurement: 60MΩ (accuracy: ±(0.8%+2)). Capacitance Measurement: 60mF (accuracy: ±(4%+5)). Frequency Measurement: 10Hz~10MHz (accuracy: ±(0.1%+4)). Range Selection: Yes. Other features: Jaw Opening: 28mm; True RMS: Yes; NCV Non-Contact Voltage Detection: Yes; Phase Detection: Yes; Continuity Test: Yes; Diode Test: Yes; MIN/MAX: Yes; Relative Measurement: Yes.
| AC Current Frequency Measurement | 50Hz~100Hz (doğruluk: ±(1%+5)) |
|---|---|
| AC Current Measurement | 600A (doğruluk: ±(2%+10)) |
| AC Voltage Frequency Measurement | 10Hz~10kHz (doğruluk: ±(1%+5)) |
| AC Voltage Measurement | 600V (doğruluk: ±(0.8%+5)) |
| Relative Measurement | Available |
| DC Voltage Measurement | 600V (doğruluk: ±(0.5%+2)) |
| Resistance Measurement | 60MΩ (doğruluk: ±(0.8%+2)) |
| Diode Test | Available |
| Low Battery Indication | Available |
| Display Size | 37mm x 25mm |
| Display Count | 6000 |
| Phase Detection | Available |
| Frequency Measurement | 10Hz~10MHz (doğruluk: ±(0.1%+4)) |
| Power Source | 1.5V pil (R03) x 2 |
| Range Selection | Available |
| Capacitance Measurement | 60mF (doğruluk: ±(4%+5)) |
| MIN/MAX | Available |
| NCV Non-Contact Voltage Detection | Available |
| Auto Power Off | Available |
| Continuity Test | Available |
| True RMS | Available |
| Data Hold | Available |
| Jaw Opening | 28 mm |
| Product Dimensions | 215mm x 63mm x 36mm |
