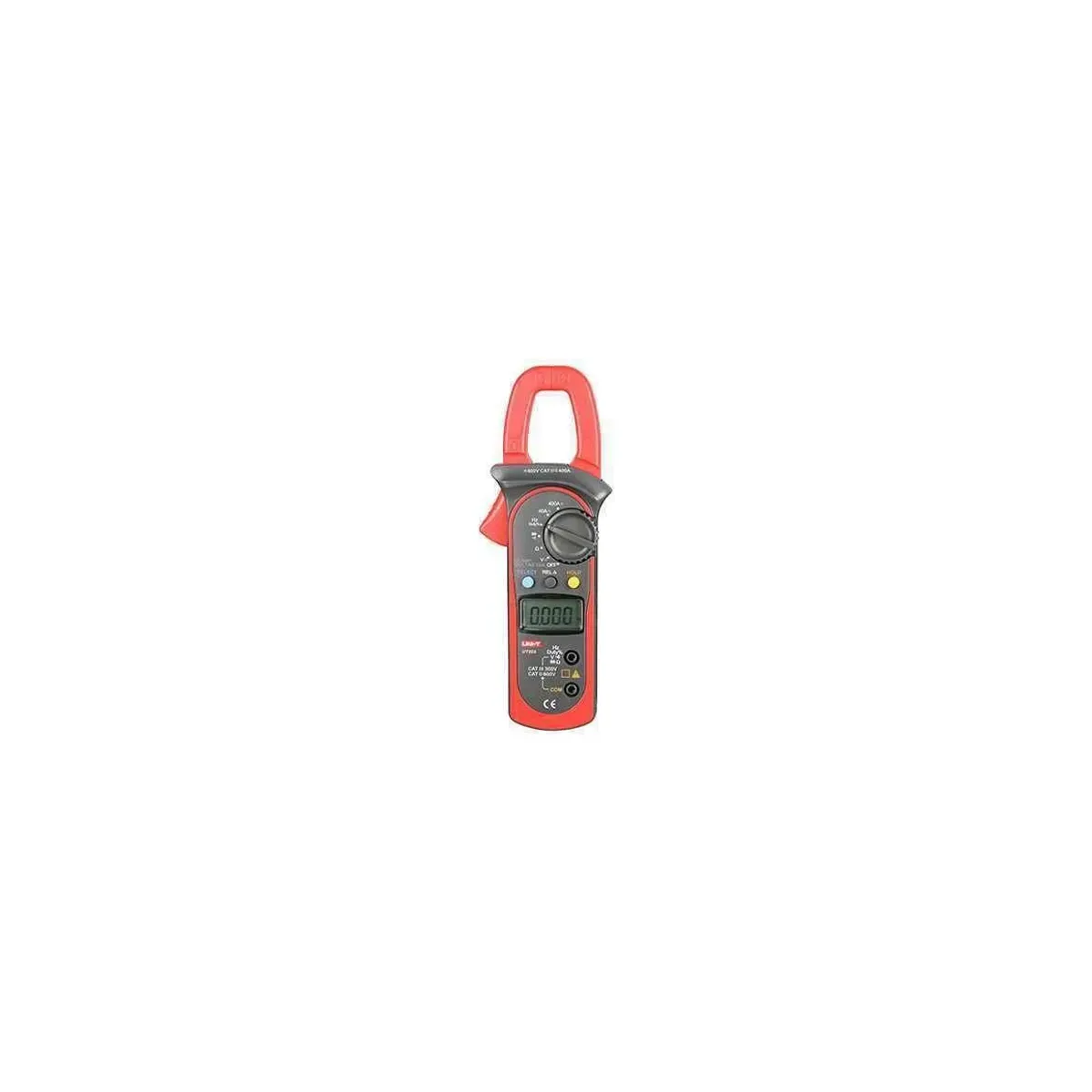

Unit UT203+ AC/DC Digital Clamp Meter
- Brand: Unit
- SKU: UT203+
- MPN: UT203+
- Price: 2192.72 TRY + VAT · incl. VAT 2631.26 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT203+ AC/DC Digital Clamp Meter. AC Current Measurement: 400A (accuracy: ±(2.5%+5)). DC Current Measurement: 400A (accuracy: ±(2.5%+5)). AC Voltage Measurement: 600V (accuracy: ±(0.8%+5)). DC Voltage Measurement: 600V (accuracy: ±(0.5%+2)). Display Count: 4000. AC Voltage Frequency Measurement: 10Hz~60kHz (accuracy: ±(0.5%+2)). Resistance Measurement: 40MΩ (accuracy: ±(0.8%+2)). Capacitance Measurement: 40mF (accuracy: ±(4%+5)). Frequency Measurement: 10Hz~10MHz (accuracy: ±(0.1%+4)). Range Selection: Yes. Other features: Jaw Opening: 28mm; True RMS: Yes; NCV Non-Contact Voltage Detection: Yes; Continuity Test: Yes; Diode Test: Yes; MIN/MAX: Yes; Relative Measurement: Yes; Reset: Yes.
| AC Current Measurement | 400A (doğruluk: ±(2.5%+5)) |
|---|---|
| AC Voltage Frequency Measurement | 10Hz~60kHz (doğruluk: ±(0.5%+2)) |
| AC Voltage Measurement | 600V (doğruluk: ±(0.8%+5)) |
| Relative Measurement | Available |
| DC Current Measurement | 400A (doğruluk: ±(2.5%+5)) |
| DC Voltage Measurement | 600V (doğruluk: ±(0.5%+2)) |
| Resistance Measurement | 40MΩ (doğruluk: ±(0.8%+2)) |
| Diode Test | Available |
| Low Battery Indication | Available |
| Display Size | 37mm x 25mm |
| Display Count | 4000 |
| Frequency Measurement | 10Hz~10MHz (doğruluk: ±(0.1%+4)) |
| Power Source | 1.5V pil (R03) x 2 |
| Range Selection | Available |
| Capacitance Measurement | 40mF (doğruluk: ±(4%+5)) |
| MIN/MAX | Available |
| NCV Non-Contact Voltage Detection | Available |
| Auto Power Off | Available |
| Continuity Test | Available |
| Reset Type | Available |
| True RMS | Available |
| Data Hold | Available |
| Jaw Opening | 28 mm |
| Product Dimensions | 215mm x 63mm x 36mm |
