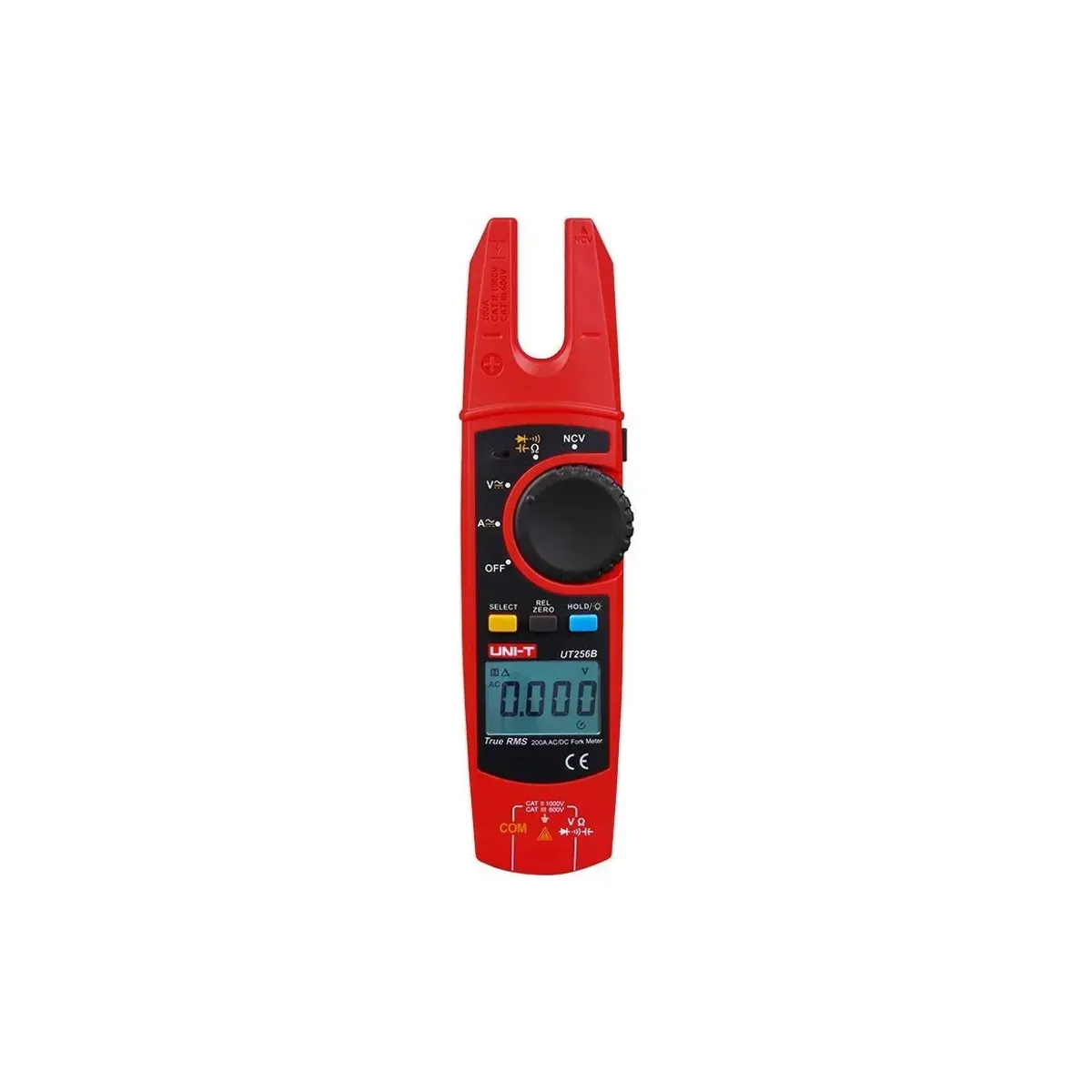

Unit UT256B 200A AC\DC Fork-Type Clamp Meter
- Brand: Unit
- SKU: UT256B
- MPN: UT256B
- Price: 3654.53 TRY + VAT · incl. VAT 4385.44 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT256B 200A AC\DC Fork-Type Clamp Meter is a clamp meter model from the UNI-T UT256 series. It has a 6000-count display. Measurement functions: DC voltage (1000 V), AC voltage (750 V), DC current (200 A), AC current (200 A), resistance (60 MΩ), capacitance (60 mF). Other features: diode test (approx. 3 V), NCV non-contact voltage detection, zeroing, relative (REL) measurement. Safety category CAT II 1000 V, CAT III 600 V. Power source: 2 × 1.5 V battery (LR6). Box contents: batteries, test probes, English user manual.
| AC Current Measurement | 200 A · ±(%2,5+5) |
|---|---|
| AC Voltage Measurement | 750 V · ±(%1,2+3) |
| Gram | 248 g |
| Relative Measurement | Available |
| DC Current Measurement | 200 A · ±(%2,5+5) |
| DC Voltage Measurement | 1000 V · ±(%0,8+3) |
| Resistance Measurement | 60 MΩ · ±(%1+2) |
| Diode Test | Yaklaşık 3 V |
| Additional Functions | Diyot testi (yaklaşık 3 V), NCV temassız gerilim algılama, sıfırlama, bağıl (REL) ölçüm |
| Display Size | 36,5 mm × 24 mm |
| Display Count | 6000 |
| Safety Category | CAT II 1000 V, CAT III 600 V |
| Power Source | 2 × 1,5 V pil (LR6) |
| Capacitance Measurement | 60 mF · ±(%4+20) |
| NCV Non-Contact Voltage Detection | Available |
| Certifications | CE, RoHS, cETLus |
| Standard Accessories | Piller, test probları, İngilizce kullanım kılavuzu |
| Reset Type | Available |
| Product Dimensions | 210 mm × 53 mm × 35 mm |
