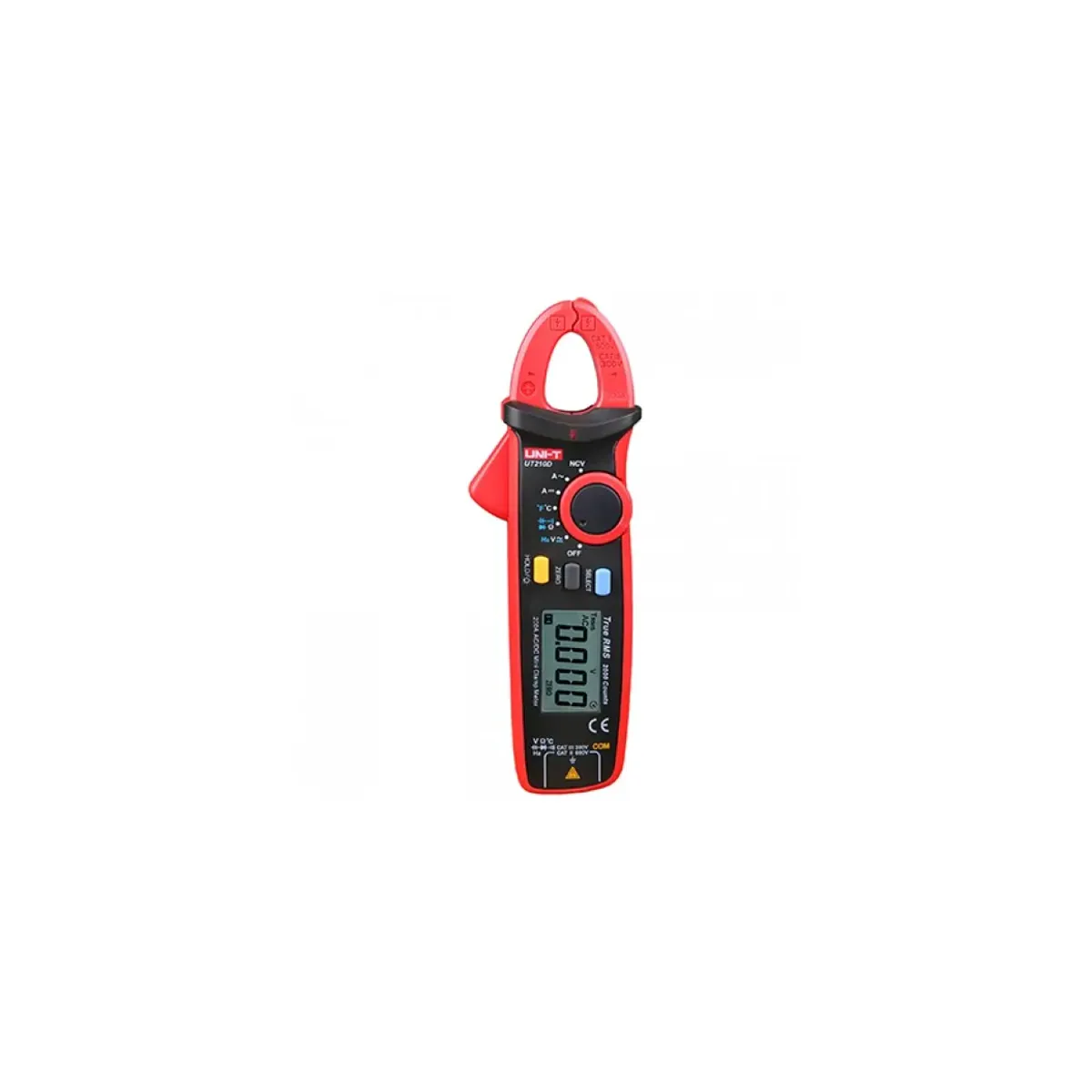

Unit UT210D True RMS Mini Clamp Meter
- Brand: Unit
- SKU: UT210D
- MPN: UT210D
- Price: 2969.31 TRY + VAT · incl. VAT 3563.17 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
This Unit UT210D True RMS Mini Clamp Meter is a clamp meter model from the UNI-T UT210 series. It has a 2000-count display. Measurement functions: DC voltage (600 V), AC voltage (600 V), DC current (200 A), AC current (200 A), resistance (20 MΩ), capacitance (20 mF), frequency (60 kHz), temperature (−40 – 1000 °C). Jaw opening 17 mm. Other features: audible continuity test, diode test (approx. 3.0 V). Power source: 2 × 1.5 V battery (R03). Box contents: batteries, test probes, point-contact temperature probe.
| AC Current Measurement | 200 A · ±(%2,5+8) |
|---|---|
| AC Voltage Measurement | 600 V · ±(%1+3) |
| Gram | 170 g |
| DC Current Measurement | 200 A · ±(%2+3) |
| DC Voltage Measurement | 600 V · ±(%0,7+3) |
| Resistance Measurement | 20 MΩ · ±(%1+2) |
| Diode Test | Yaklaşık 3.0V |
| Additional Functions | Sesli süreklilik testi, diyot testi (yaklaşık 3,0 V) |
| Display Size | 39,3 mm × 26,5 mm |
| Display Count | 2000 |
| Frequency Measurement | 60 kHz · ±(%0,1+4) |
| Power Source | 2 × 1,5 V pil (R03) |
| Range Selection | Otomatik |
| Capacitance Measurement | 20 mF · ±(%4+5) |
| Standard Accessories | Piller, test probları, nokta temaslı sıcaklık probu |
| Continuity Test | Available |
| Temperature Measurement | −40 – 1000 °C · ±(%1+3) |
| Jaw Opening | 17 mm |
| Product Dimensions | 175 mm × 60 mm × 33,5 mm |
