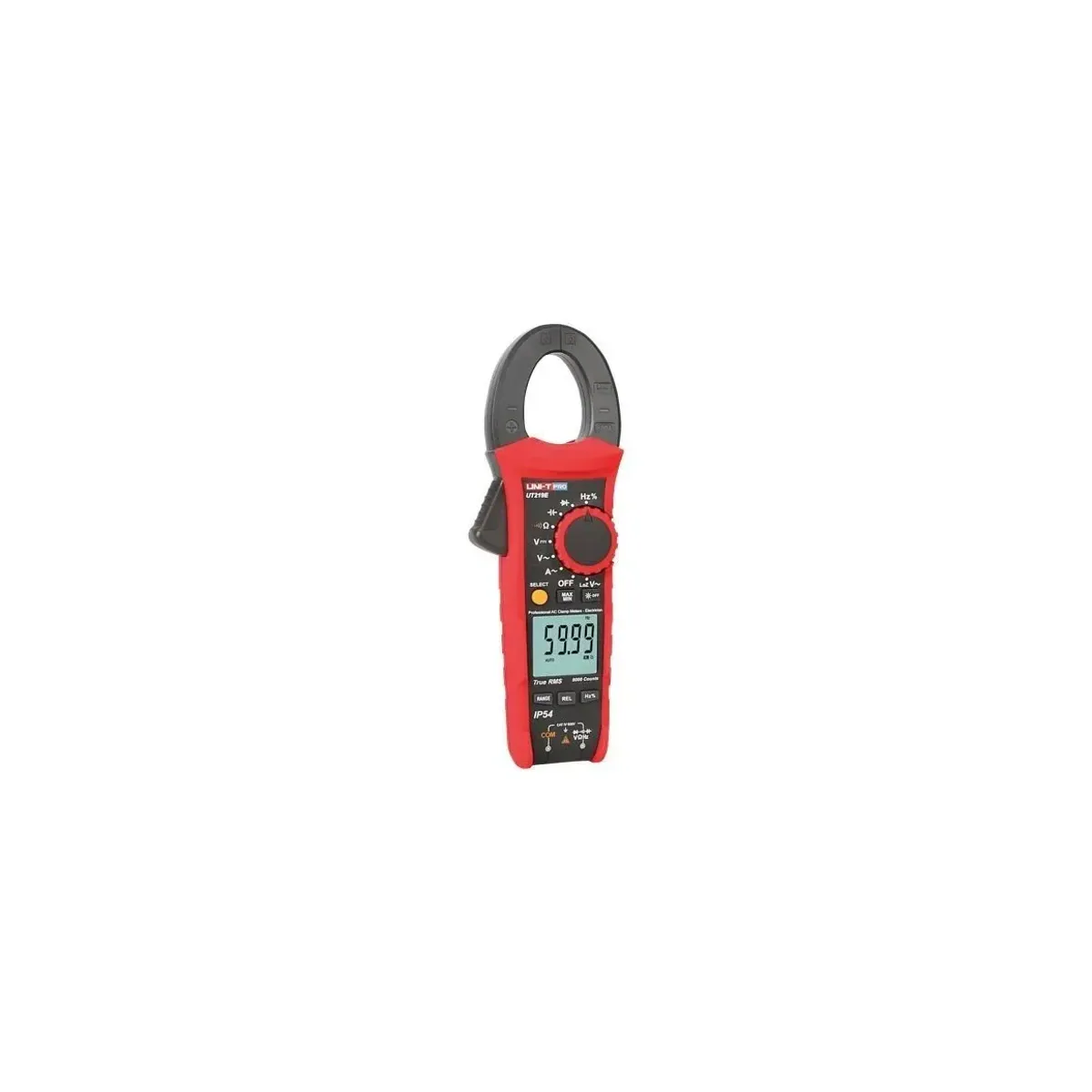

Unit UT219E Professional Clamp Ammeter
- Brand: Unit
- SKU: UT219E
- MPN: UT219E
- Price: 4842.26 TRY + VAT · incl. VAT 5810.71 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT219E Professional Clamp Meter, a clamp meter model from the UNI-T UT219 series. It has a 6000-count display and performs True RMS measurement. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), AC current (600 A), resistance (60 MΩ), capacitance (60 mF), frequency (10 Hz – 10 MHz), duty cycle (0.1% – 99.9%). Jaw opening 33 mm. Other features: low battery indicator, reset, function selection (SELECT), auto power off, MAX, MIN, data hold, relative (REL) measurement, automatic backlight, 2 m drop resistance. Safety category CAT IV 600 V. Power source: 3 × 1.5 V battery (R03). Box contents: test probes, batteries, carrying case, PC software CD.
| AC Current Frequency Response | 40 Hz – 400 Hz |
|---|---|
| AC Current Measurement | 600 A · ±(%1,8+6) |
| AC Voltage Frequency Response | 40 Hz – 400 Hz |
| AC Voltage Measurement | 1000 V · ±(%1+6) |
| Analog Bar Graph | 31 segment |
| Analog Bar Update Rate | 10 kez/s |
| Gram | 310 g |
| DCV Input Impedance | ≥10 MΩ |
| DC Voltage Measurement | 1000 V · ±(%0,6+3) |
| Resistance Measurement | 60 MΩ · ±(%1+3) |
| Diode Test | 3 V |
| Low Battery Indication | Available |
| Additional Functions | Düşük pil göstergesi, sıfırlama, fonksiyon seçimi (SELECT), otomatik kapanma, MAX, MIN, veri tutma, bağıl (REL) ölçüm, otomatik arka ışık, 2 m düşme dayanımı |
| Display | Tek |
| Display Size | 35 mm × 31 mm |
| Display Count | 6000 |
| Function Selection | Available |
| Frequency Measurement | 10 Hz – 10 MHz · ±(%0,1+6) |
| Duty Cycle Measurement | %0,1 – %99,9 · ±(%2,6+7) |
| Safety Category | CAT IV 600 V |
| Power Source | 3 × 1,5 V pil (R03) |
| IP Rating | IP54 |
| Range Selection | Otomatik / Manuel |
| Capacitance Measurement | 60 mF · ±(%4+7) |
| LoZ Voltage Measurement | 600 V · ±(%2,5+6) |
| Auto Power Off and MIN/MAX | Available |
| Standard Accessories | Test probları, piller, taşıma çantası, PC yazılım CD'si |
| Reset Type | Available |
| True RMS | Available |
| Data Hold and Relative Measurement | Available |
| Jaw Opening | 33 mm |
| Measurement Rate | 3 kez/s |
| Measurement Sampling Rate | 3 ölçüm/s |
| Product Dimensions | 234,6 mm × 82 mm × 47 mm |
