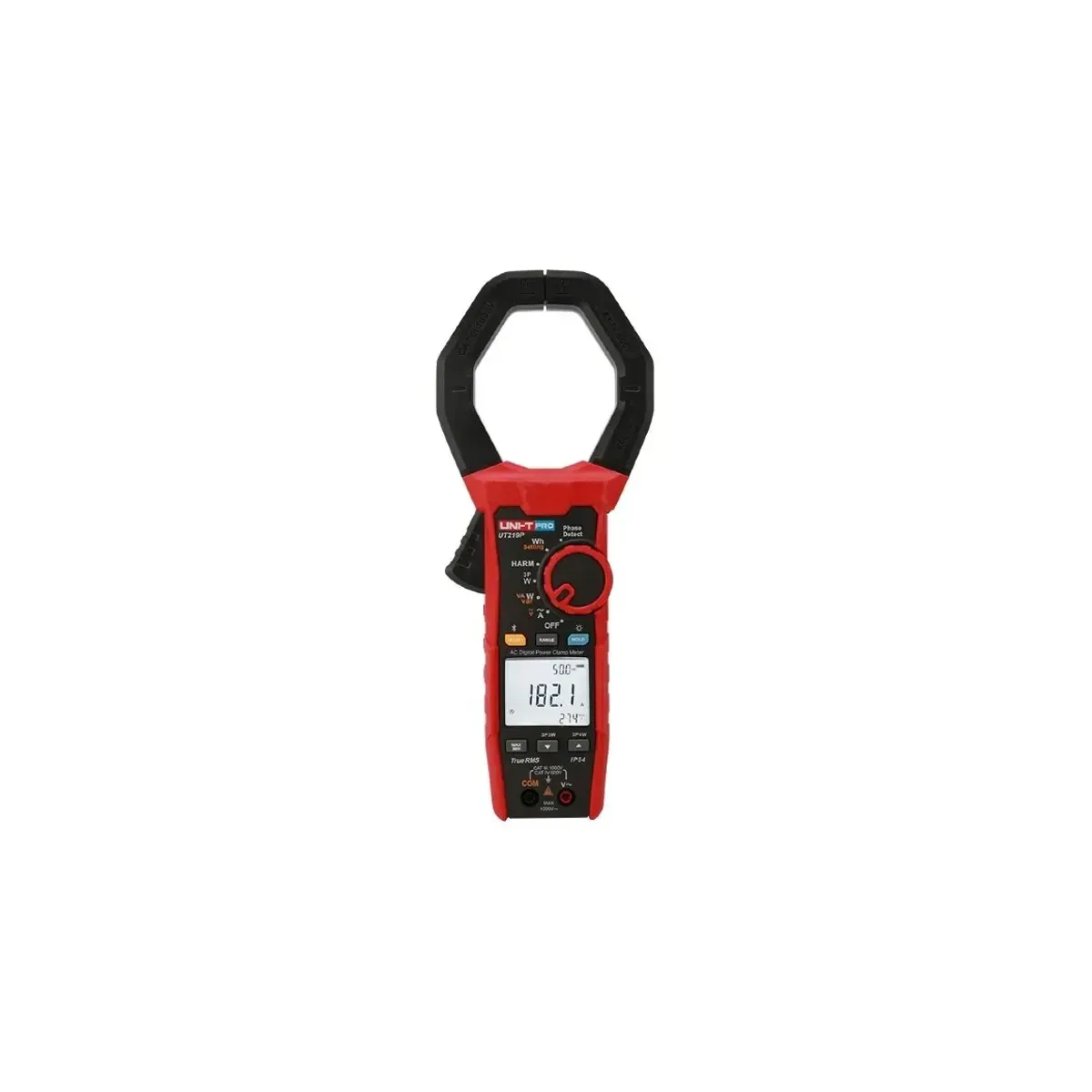

Unit Ut219P AC Wide-Jaw Digital Clamp Meter
- Brand: Unit
- SKU: UT219P
- MPN: UT219P
- Price: 12836.55 TRY + VAT · incl. VAT 15403.86 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit Ut219P AC Wide-Jaw Digital Clamp Meter, a clamp-type power meter model manufactured by UNI-T. It has a 9999-count display and performs True RMS measurement. Measurement functions: AC voltage (1000 V), AC current (1000 A), frequency (15 Hz – 1000 Hz), power factor (−1 – 1), phase angle (15 Hz – 1000 Hz). Jaw opening 75 mm. Other features: AC/DC peak value measurement, Bluetooth app, overload indicator, high voltage indicator, high voltage overload warning, low battery indicator, data hold, MAX/MIN. Safety category CAT III 1000 V / CAT IV 600 V.
| AC Current Measurement | 1000 A · ±(%1,5+3) |
|---|---|
| AC Voltage Measurement | 1000 V · ±(%0,7+3) |
| AC/DC Peak Measurement | Available |
| Overload Indication | Available |
| Bluetooth | Available |
| Low Battery Indication | Available |
| Additional Functions | AC/DC tepe değer ölçümü, Bluetooth uygulaması, aşırı load göstergesi, yüksek gerilim göstergesi, yüksek gerilim aşırı load uyarısı, düşük pil göstergesi, veri tutma, MAX/MIN |
| Display | LCD, 4 sonuç aynı anda |
| Display Count | 9999 |
| Phase Detection | 80–1000 V, pozitif ve negatif |
| Phase Angle Measurement | 15 Hz – 40 Hz · ±5°; 40 Hz – 70 Hz · ±3°; 70 Hz – 1000 Hz · ±5° |
| Frequency Measurement | 15 Hz – 1000 Hz · ±(%0,3+3) |
| Safety Category | CAT III 1000 V / CAT IV 600 V |
| Power Factor Measurement | −1 – 1 |
| Power Frequency | 15Hz~1000Hz (doğruluk: ±(0.3%+3)) |
| Power (3-phase 3-wire) | 1732 kW · ±(%1,7+5) |
| Power (3-phase 4-wire) | 3000 kW · ±(%1,7+5) |
| Power (single phase) | 1000 kW · ±(%1,7+5) |
| Harmonic Measurement | 32. harmoniğe kadar |
| MIN/MAX | Available |
| Auto Power Off | yaklaşık 15 min |
| Certifications | CE, UKCA, cETLus |
| Single-Phase Power Measurement | 1000KW (doğruluk: ±(1.7%+5)) |
| True RMS | Available |
| Data Hold | Available |
| High Voltage Alarm | Available |
| High Voltage Indicator | Available |
| Jaw Opening | 75 mm |
| Three-Phase Four-Wire Power Measurement | 3000KW (doğruluk: ±(1.7%+5)) |
| Three-Phase Three-Wire Power Measurement | 1732KW (doğruluk: ±(1.7%+5)) |
