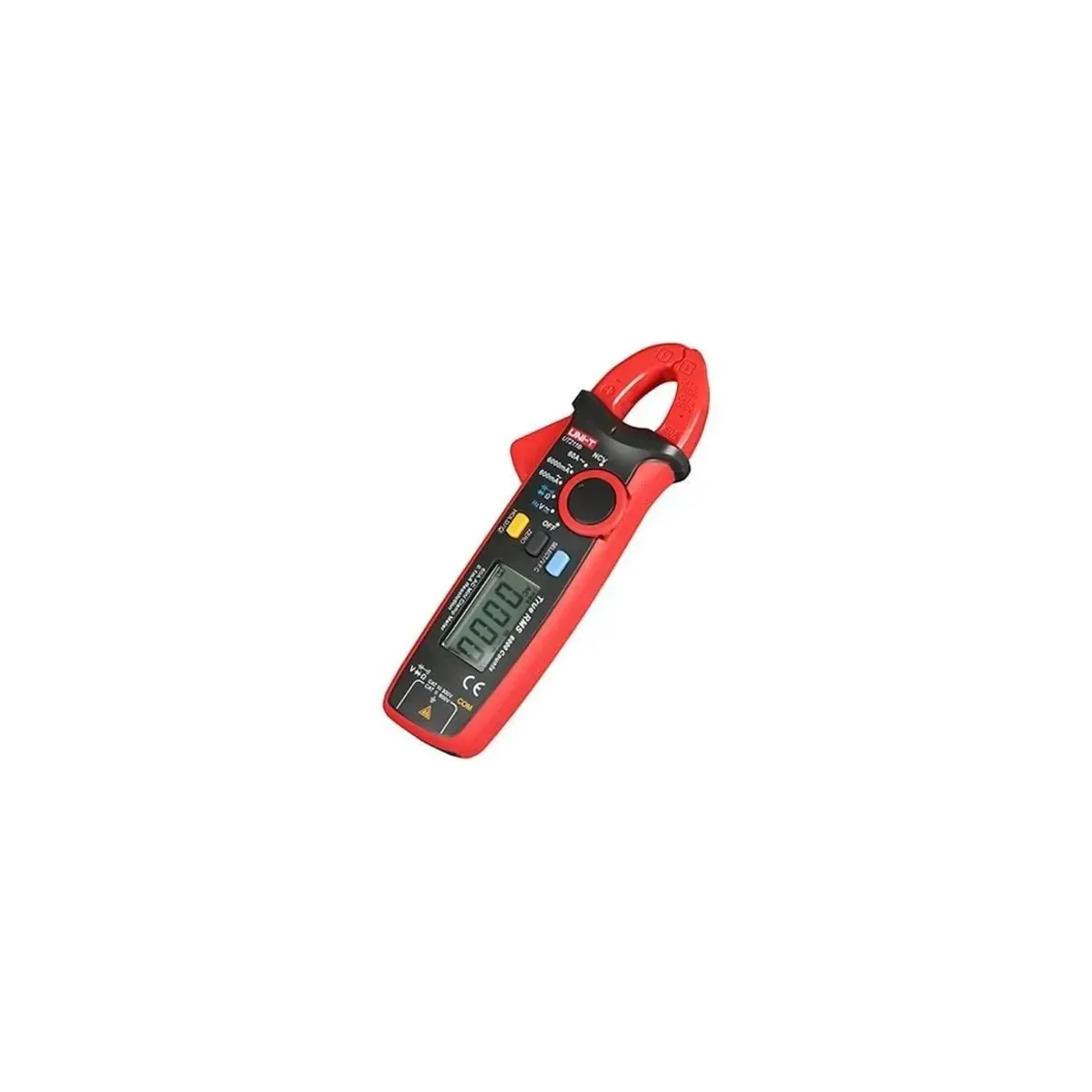

Unit UT211B 60A True RMS Multifunction Mini Clamp Ammeter
- Brand: Unit
- SKU: UT211B
- MPN: UT211B
- Price: 5755.89 TRY + VAT · incl. VAT 6907.07 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT211B 60A True RMS Multifunction Mini Clamp Meter, a clamp meter model manufactured by UNI-T. It has a 6000-count display and performs True RMS measurement. Measurement functions: DC voltage (600 V), AC voltage (600 V), DC current (60 A), AC current (60 A (resolution 0.01 A)), resistance (60 MΩ), capacitance (62 mF). Other features: diode test (approx. 3.0 V), VFC (variable frequency drive) measurement, NCV non-contact voltage detection, data hold, reset, backlight, auto power off (approx. 15 min), audible continuity test, low battery indicator (≤2.5 V), input protection. Power source: 2 × 1.5 V battery (R03). Box contents: batteries, test probes.
| AC Current Measurement | 60 A (çözünürlük 0,01 A) · ±(%2,0+5) |
|---|---|
| AC Voltage Measurement | 600 V · ±(%0,8+3) |
| Backlight | Available |
| Gram | 170 g |
| DC Current Measurement | 60 A · ±(%2+3) |
| DCV Input Impedance | ≥10 MΩ |
| DC Voltage Measurement | 600 V · ±(%0,7+3) |
| Resistance Measurement | 60 MΩ · ±(%0,8+2) |
| Diode Test | Yaklaşık 3.0V |
| Low Battery Indication | ≤2.5V |
| Additional Functions | Diyot testi (yaklaşık 3,0 V), VFC (frekans sürücülü) ölçüm, NCV temassız gerilim algılama, veri tutma, sıfırlama, arka ışık, otomatik kapanma (yaklaşık 15 min), sesli süreklilik testi, düşük pil göstergesi (≤2,5 V), giriş koruması |
| Display Size | 39,3 mm × 26,5 mm |
| Display Count | 6000 |
| Input Protection | Available |
| Power Source | 2 × 1,5 V pil (R03) |
| Range Selection | Otomatik |
| Capacitance Measurement | 62 mF · ±(%4+5) |
| NCV Non-Contact Voltage Detection | Available |
| Auto Power Off | Yaklaşık 15 dakika |
| Standard Accessories | Piller, test probları |
| Continuity Test | Available |
| Reset Type | Available |
| True RMS | Available |
| VFC Voltage Measurement | Available |
| Data Hold | Available |
| Product Dimensions | 175 mm × 60 mm × 33,5 mm |
