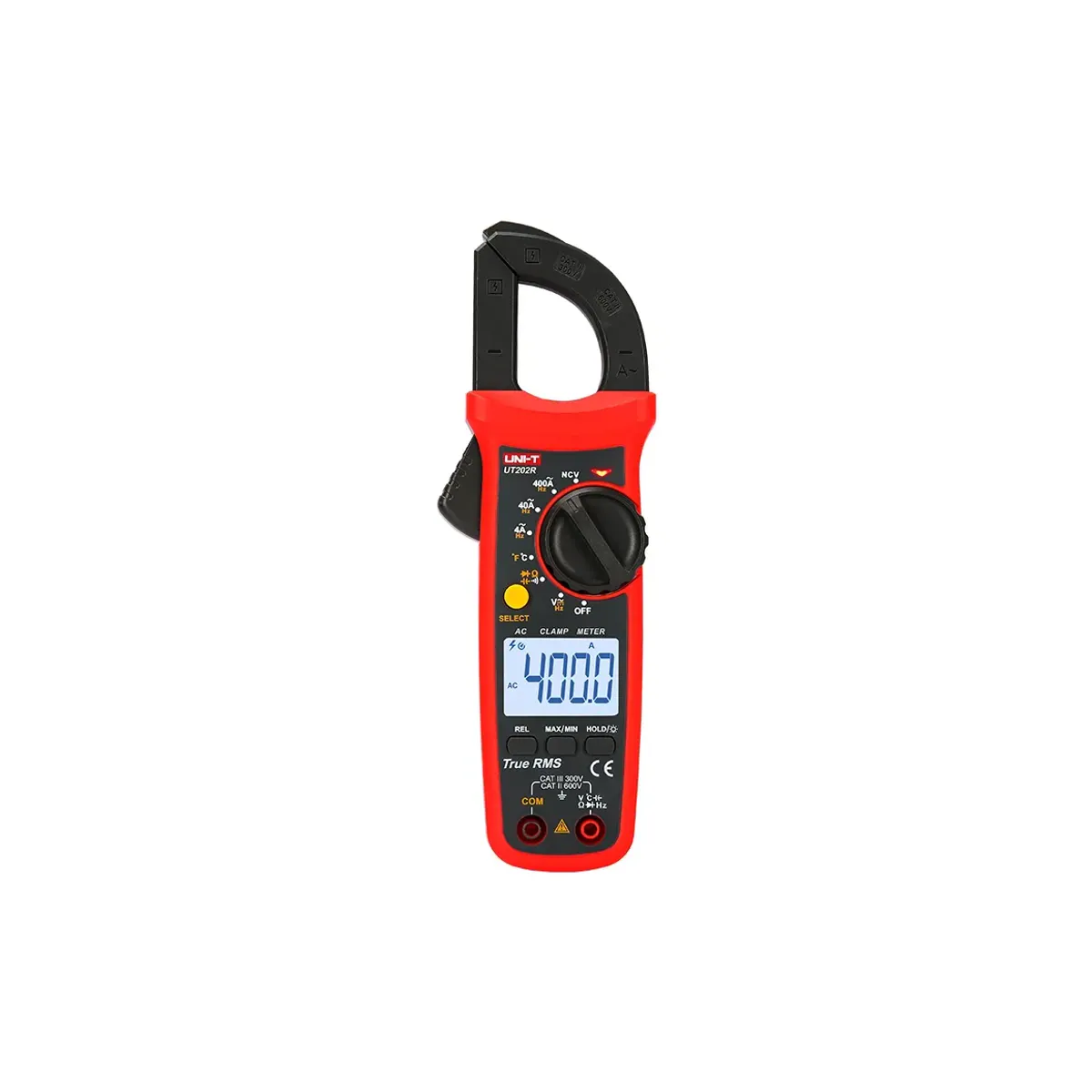

Unit UT202R Digital Clamp Ammeter
- Brand: Unit
- SKU: UT202R
- MPN: UT202R
- Price: 1735.90 TRY + VAT · incl. VAT 2083.08 TRY
- Availability: Made to order
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT202R Digital Clamp Ammeter is a digital multimeter model from the UNI-T UT200R series. It has a 4000-count display and performs True RMS measurement. Measurement functions: DC voltage (600 V), AC voltage (600 V), AC current (0.04 – 400 A), capacitance (4 mF), temperature (−40 °C – 1000 °C), voltage frequency (10 Hz – 10 kHz), current frequency (50 Hz – 100 Hz). Jaw opening 28 mm. Other features: NCV non-contact voltage detection, audible continuity test, diode test, MAX/MIN, relative (REL) measurement, data hold, low battery indicator, auto power off. Safety category CAT II 600 V / CAT III 300 V. Power source: 2 × 1.5 V battery (R03). Box contents: batteries, test probes, thermocouple.
| AC Current Frequency Measurement | 50 Hz – 100 Hz · ±(%1+5) |
|---|---|
| AC Current Measurement | 0,04 – 400 A · ±(%2+10) |
| AC Voltage Frequency Measurement | 10 Hz – 10 kHz · ±(%1+5) |
| AC Voltage Measurement | 600 V · ±(%0,8+5) |
| Gram | 248 g |
| Relative Measurement | Available |
| DC Voltage Measurement | 600 V · ±(%0,5+2) |
| Diode Test | Available |
| Low Battery Indication | Available |
| Additional Functions | NCV temassız gerilim algılama, sesli süreklilik testi, diyot testi, MAX/MIN, bağıl (REL) ölçüm, veri tutma, düşük pil göstergesi, otomatik kapanma |
| Display Size | 37 mm × 25 mm |
| Display Count | 4000 |
| Safety Category | CAT II 600 V / CAT III 300 V |
| Power Source | 2 × 1,5 V pil (R03) |
| Range Selection | Otomatik |
| Capacitance Measurement | 4 mF · ±(%4+5) |
| MIN/MAX | Available |
| NCV Non-Contact Voltage Detection | Available |
| Auto Power Off | Available |
| Standard Accessories | Piller, test probları, termokupl |
| Continuity Test | Available |
| Temperature Measurement | −40 °C – 1000 °C · ±(%1,5+5) |
| True RMS | Available |
| Data Hold | Available |
| Jaw Opening | 28 mm |
| Product Dimensions | 215 mm × 63 mm × 36 mm |
