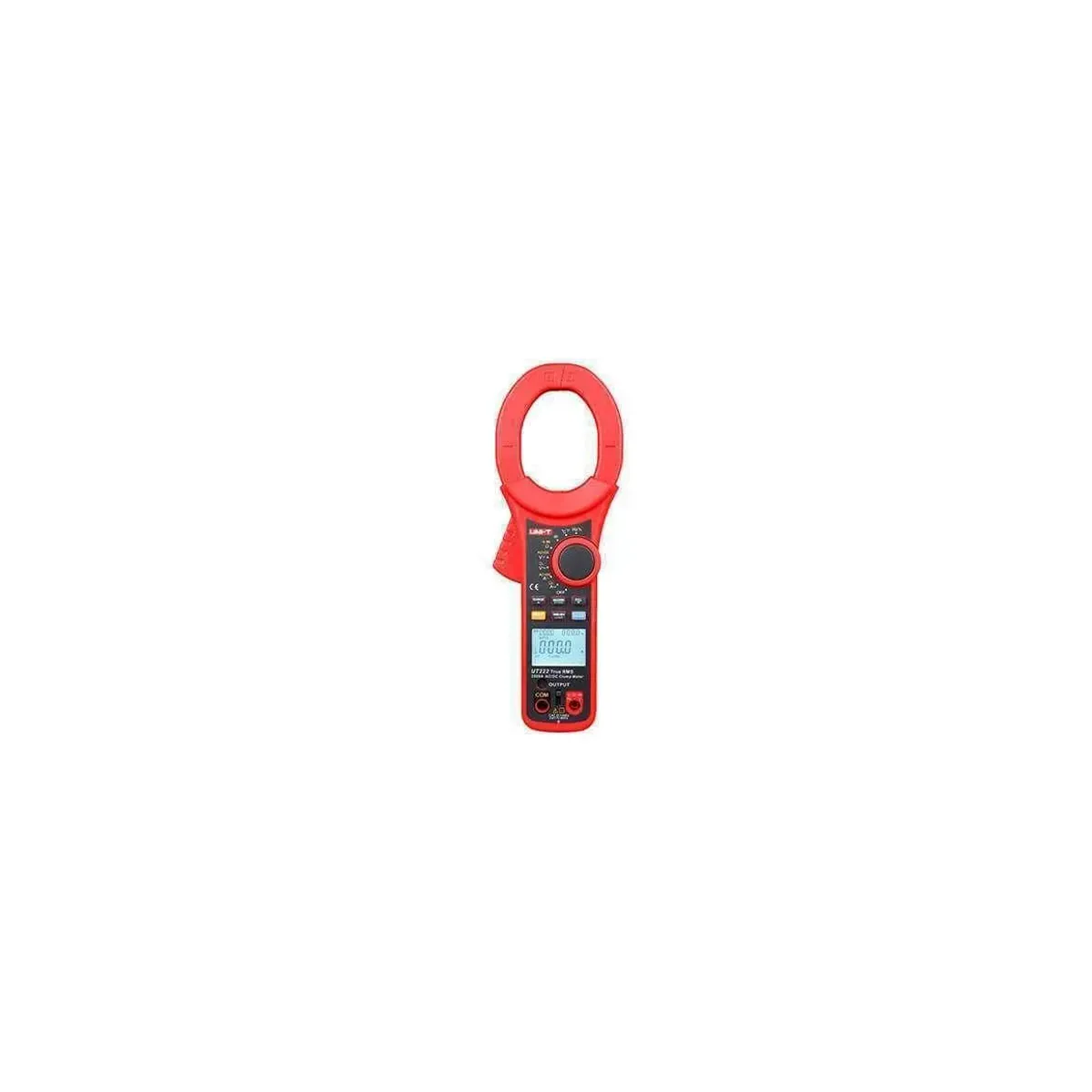

Unit UT222 AC/DC 2500A Digital Clamp Meter
- Brand: Unit
- SKU: UT222
- MPN: UT222
- Price: 10415.42 TRY + VAT · incl. VAT 12498.50 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT222 AC/DC 2500A Digital Clamp Meter, a clamp meter model of the UNI-T UT220 series. It has a 6000-count display. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), DC current (2500 A), AC current (2500 A), resistance (60 MΩ), capacitance (60 mF), frequency (60 MHz), temperature (−40 °C – 1000 °C). Memory: 1000 records. Jaw opening 63 mm. Other features: true RMS (AC voltage/current), duty cycle measurement (10% – 90%), audible continuity test, AC+DC measurement, low-pass filter (LPF), inrush current measurement (AC current), relative (REL) measurement, MIN / I-OUT function, full symbol display, low battery indicator, auto range, diode test, data hold, MAX. Power source: 9 V battery (6F22). Box contents: test probes, output cable, thermocouple.
| AC Current Measurement | 2500 A · ±(%1,5+5) |
|---|---|
| AC Voltage Measurement | 1000 V · ±(%1+3) |
| AC+DC Voltage Measurement | Available |
| Low-Pass Filter | Available |
| Analog Bar Graph | 61 segment |
| Gram | 726 g |
| Relative Measurement | Available |
| DC Current Measurement | 2500 A · ±(%1,5+5) |
| DCV Input Impedance | ≥10 MΩ |
| DC Voltage Measurement | 1000 V · ±(%0,5+2) |
| Resistance Measurement | 60 MΩ · ±(%1+2) |
| Low Battery Indication | Available |
| Additional Functions | True RMS (AC gerilim/akım), görev döngüsü ölçümü (%10 – %90), sesli süreklilik testi, AC+DC ölçüm, düşük geçiren filtre (LPF), kalkış (inrush) akımı ölçümü (AC akım), bağıl (REL) ölçüm, MIN / I-OUT fonksiyonu, tam simge ekran, düşük pil göstergesi, otomatik kademe, diyot testi, veri tutma, MAX |
| Display Size | 43 mm × 30 mm |
| Display Count | 6000 |
| Frequency Measurement | 60 MHz · ±(%0,1+3) |
| Duty Cycle Measurement | 10%~90% |
| Power Source | 9 V pil (6F22) |
| Memory | 1000 kayıt |
| Inrush Current Measurement | AC akım |
| Capacitance Measurement | 60 mF · ±(%3+5) |
| Auto Range and Diode Test | Available |
| Standard Accessories | Test probları, çıkış kablosu, termokupl |
| Continuity Test | Available |
| Temperature Measurement | −40 °C – 1000 °C · ±(%1+10) |
| Full Symbol Display | Available |
| True RMS | Available |
| Data Hold and MAX | Available |
| Jaw Opening | 63 mm |
| Product Dimensions | 298 mm × 107 mm × 47 mm |
