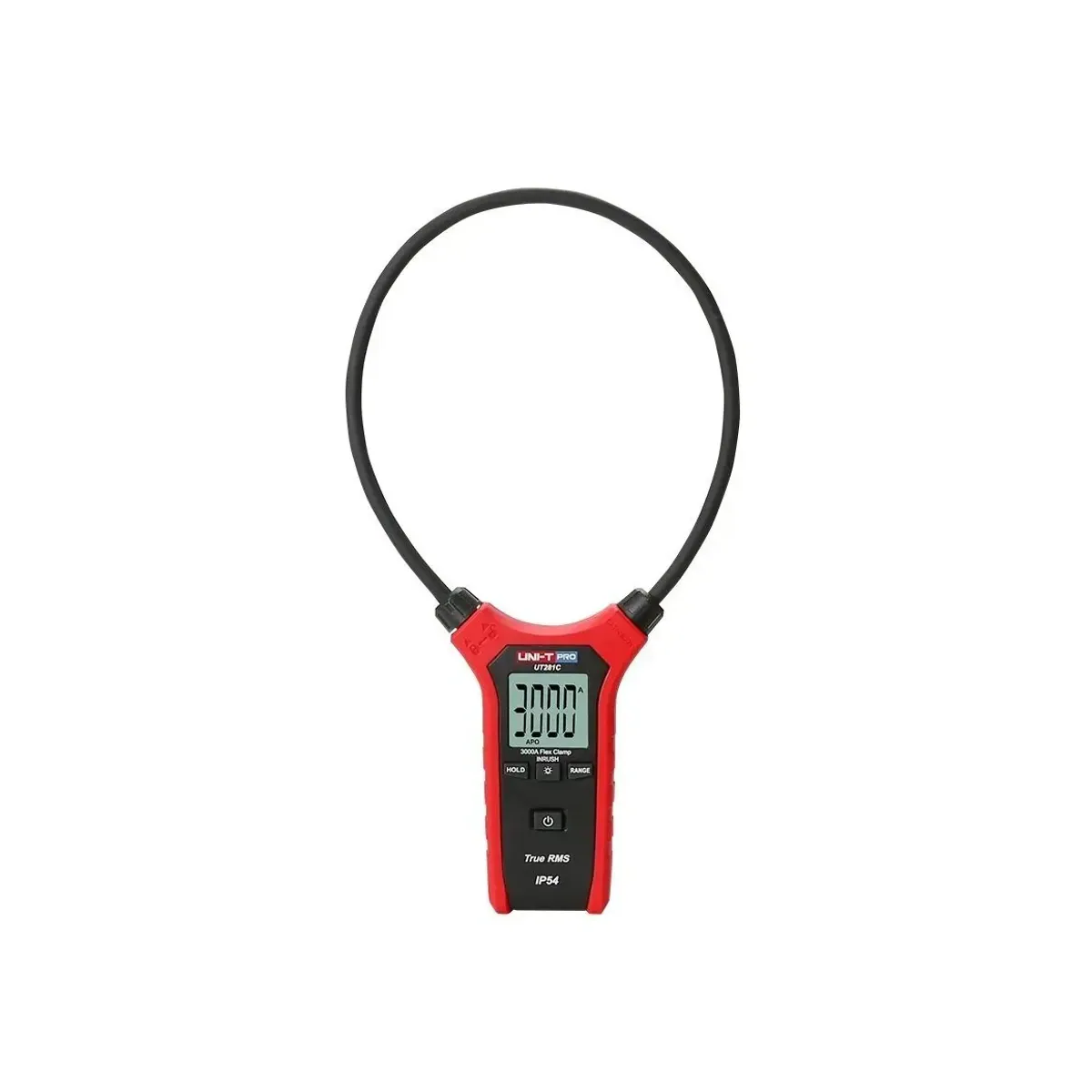

Unit UT281C True RMS 3000A Flexible Clamp Meter
- Brand: Unit
- SKU: UT281C
- MPN: UT281C
- Price: 5116.35 TRY + VAT · incl. VAT 6139.62 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT281C True RMS 3000A Flexible Clamp Meter is a clamp meter model from the UNI-T UT281 series. It has a 3000-count display and performs True RMS measurement. Measurement functions: AC current (3000 A). Other features: inrush current measurement (0.5 A – 3000 A (reference)), auto power off, low battery indicator, 2 m drop resistance, data hold, audible alert, backlight, function selection (SELECT). Power source: 3 × 1.5 V battery (R03). Box contents: batteries.
| AC Current Measurement | 30 A / 300 A / 3000 A · ±(%3+5) |
|---|---|
| Backlight and Function Selection | Available |
| Gram | 236 g |
| Low Battery Indication | Available |
| Additional Functions | Kalkış (inrush) akımı ölçümü (0,5 A – 3000 A (referans)), otomatik kapanma, düşük pil göstergesi, 2 m düşme dayanımı, veri tutma, sesli uyarı, arka ışık, fonksiyon seçimi (SELECT) |
| Display | Tek |
| Display Size | 32 × 34 mm (1,8 inç) |
| Display Count | 3000 |
| Flex Coil Size | 18” (45,7 cm) yarıçap: 3,1” (8 cm) |
| Flexible Clamp Size | 18” (45.7cm) yarıçap: 3.1” (8cm) |
| Frequency Response | 45 Hz – 500 Hz (sinüs dalga) |
| Refresh Rate | 3 kez/s |
| Power Source | 3 × 1,5 V pil (R03) |
| IP Rating | IP54 |
| Range Selection | Manuel |
| Inrush Current Measurement | 0.5A~3000A (referans için) |
| Auto Power Off | Available |
| Standard Accessories | Piller |
| True RMS | Available |
| Data Hold and Audible Alert | Available |
| Refresh Rate | 3 ölçüm/s |
| Product Dimensions | 350 mm × 190 mm × 55 mm |
