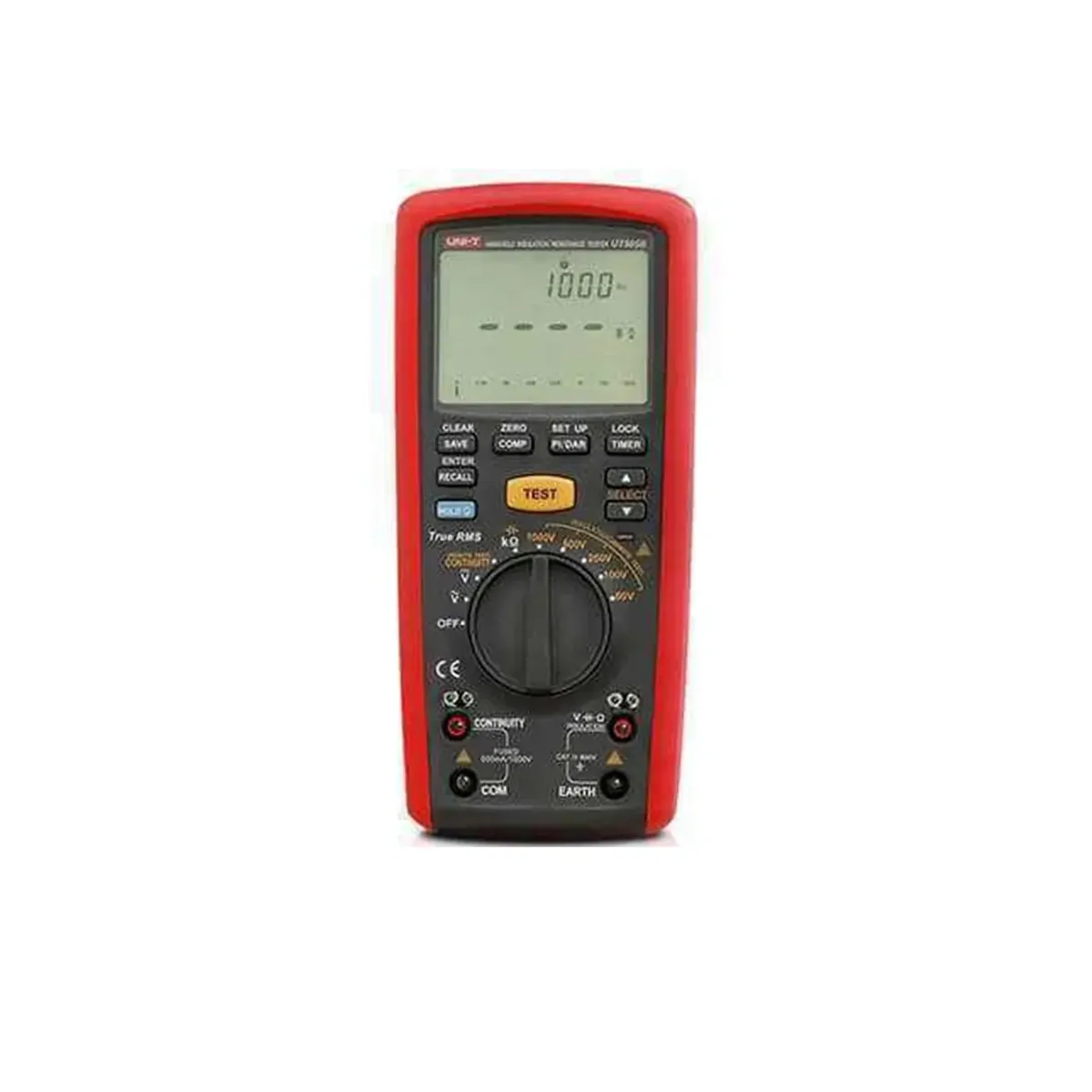

Unit UT505B 0.1nF 500μF Insulation Resistance Tester

Unit UT505B 0.1nF 500μF Insulation Resistance Tester

Unit UT505B 0.1nF 500μF Insulation Resistance Tester. AC Voltage Measurement: 0V~600V (accuracy: ±(1.5%+5)). DC Voltage Measurement: 0V~600V (accuracy: ±(2%+3)). Display Count: 6000. Leakage Current Measurement: 10~2000μA (accuracy: ±(10%+3)). Low Resistance Measurement: 0.01Ω~100Ω (approx. 5V/>200mA/20mA optional) (accuracy: ±(1.5%+3)). Resistance Measurement: 0.01kΩ~10MΩ (accuracy: ±(3%+3)). Frequency Measurement: 45~1kHz (accuracy: ±(0.1%+3)). Capacitance Measurement: 100pF~500μF (accuracy: ±(5%+5)). Auto Range and True RMS: Yes. Voltage Step: 10% steps within 50%–120 of the range. Other features: DAR Test: 60s/15s and 60s/30s; PI and Timed Measurement: Yes; Automatic Discharge: Yes; Fuse Check: Yes; Analog Bar Graph: Yes; Continuity Test: Yes; Comparative Measurement: Yes; Low Battery Indication: Yes.

AC Voltage Measurement0V~600V (doğruluk: ±(1.5%+5))
Analog Bar GraphAvailable
Gram630 g
DAR Test60s/15s ve 60s/30s
DC Voltage Measurement0V~600V (doğruluk: ±(2%+3))
Resistance Measurement0.01kΩ~10MΩ (doğruluk: ±(3%+3))
Low Resistance Measurement0.01Ω~100Ω (yaklaşık 5V/>200mA/20mA opsiyonel) (doğruluk: ±(1.5%+3))
Low Battery IndicationAvailable
Display Size78mm x 59mm
Display Count6000
Frequency Measurement45~1kHz (doğruluk: ±(0.1%+3))
Voltage StepAralığın %50–120’sinde %10 adımlar
Power Source1.5V pil (LR6) x 6
Capacitance Measurement100pF~500μF (doğruluk: ±(5%+5))
Comparative MeasurementAvailable
Leakage Current Measurement10~2000μA (doğruluk: ±(10%+3))
Automatic DischargeAvailable
Auto Range and True RMSAvailable
PI and Timed MeasurementAvailable
Fuse CheckAvailable
Continuity TestAvailable
Product Dimensions103mm x 225mm x 59mm
