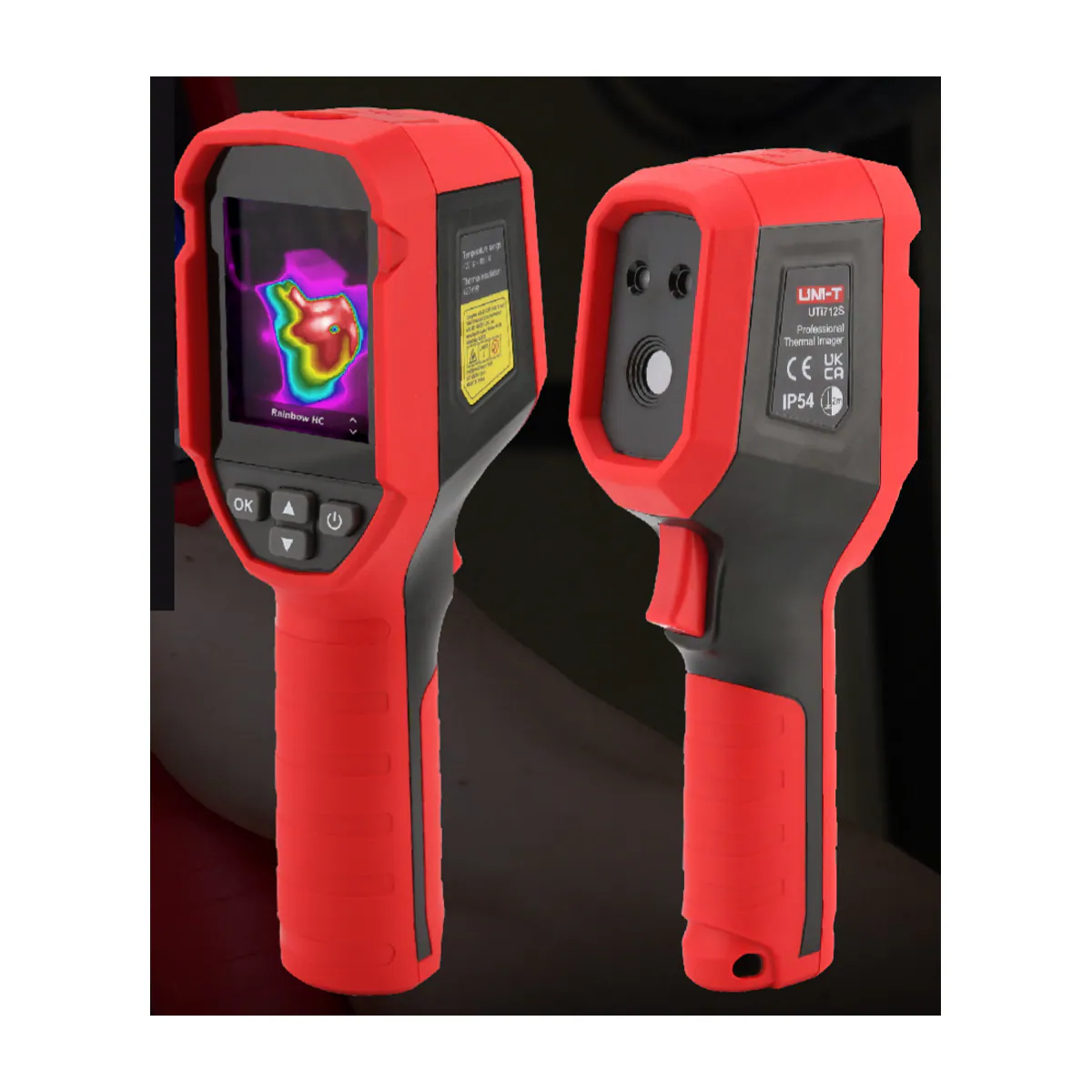

Unit UTi712S 120 x 90 Thermal Imaging Camera with Laser Pointer
- Brand: Unit
- SKU: UTI712S
- MPN: UTi712S
- Price: 9593.15 TRY + VAT · incl. VAT 11511.78 TRY
- Availability: Made to order
- Thermal Cameras
- Selection guide: Thermal Cameras Selection Guide: Technical Criteria & Application Standards
Unit UTi712S is a thermal imaging camera with 120 x 90 resolution and a 4-button body suited to one-handed use. Pixel size is 17 µm, thermal sensitivity ≤60 mK, field of view 50° × 38° and temperature range -20°C to 400°C, with an accuracy of ±2°C or ±2%, whichever is greater. It has a thermal-only image mode, temperature compensation, a laser pointer and LED lighting, and uses a 2.4 in TFT display (320 × 240). The 2600 mAh Li-ion battery runs for at least 8 hours; images are saved as BMP to a 32 GB Micro SD card and the camera works with the PC analysis software. It is rated IP54 and 2 m drop proof and weighs 316 g.
| Infrared Resolution | 120 x 90 |
|---|---|
| Display Size | 2.4 inç TFT (320 × 240) |
| Pixel Size | 17 µm |
| Frame Rate | ≤25 Hz |
| Thermal Sensitivity (NETD) | ≤60 mK |
| Focus | Sabit odak |
| Field of View | 50° (yatay) × 38° (dikey) |
| Temperature Range | -20°C ~ 400°C |
| Accuracy | ±2°C veya ±%2, hangisi büyükse |
| Display Modes | Termal |
| Temperature Alarm | LCD animasyonu, LED el feneri, sesli uyarı |
| Temperature Tracking | Var (en yüksek / en düşük) |
| LED Lighting | Available |
| Laser Pointer | Available |
| Analysis Software | PC |
| Power Source | 2600 mAh şarj edilebilir Li-ion pil |
| Battery Life | ≥8 saat |
| USB Interface | Type-C |
| Storage Capacity | 32 GB Micro SD kart |
| Image File Format | BMP |
| IP Rating | IP54 |
| Drop Resistance | 2 m |
| Certifications | CE, UKCA, FCC, RoHS, FDA |
| Languages | EN, FR, DE, ES, RU |
| Gram | 316 g |
| Product Dimensions | 197 × 72 × 60 mm |
| Standard Accessories | Type-C USB kablosu, el askısı, Micro SD kart, İngilizce kılavuz, belge indirme kılavuzu |
| Ambient Air Temperature Compensation | Available |
| Color Palettes | 6 (Black sıcak, White sıcak, Demir (Ironbow), Yüksek kontrastlı gökkuşağı, Gökkuşağı, Lav) |
| Spatial Resolution (IFOV) | 7.3 mrad |
| Emissivity | 0.01 ~ 1.00 ayarlanabilir (varsayılan 0.95) |
