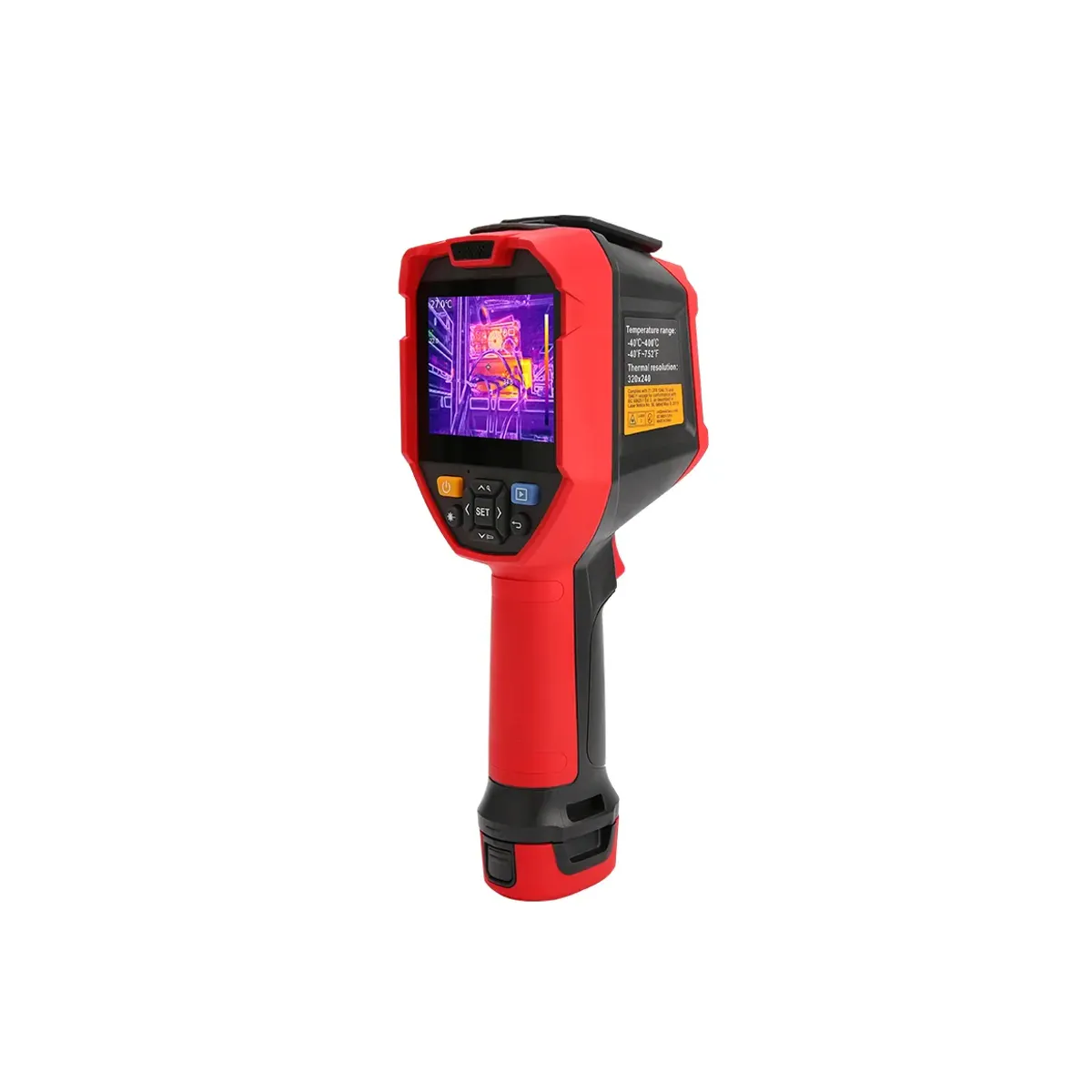

Unit UTi730V Thermal Camera

Unit UTi730V Thermal Camera

Unit UTi730V Thermal Camera. Infrared Resolution: 320×240. Temperature Range: -40°C~400°C. Display Size: 3.5′′ IPS Touchscreen (640×480). Spectral Response: 8~14μm. Pixel Size: 12μm. Frame Rate: ≤9Hz. Thermal Sensitivity (NETD): ≤65mK. Focus: Fixed focus. Field of View: 56°(H) × 42°(V). Accuracy: ±2°C or ±2%, whichever is greater. Other features: Color Palettes: White hot, Black hot, Red hot, Ironbow, High-contrast rainbow, Rainbow, Lava; Display Modes: Thermal, Visible light image, Fused image (T-Mix), PIP; On-Screen Analysis: 5 points/1 lines/3 rectangles/3 circles; Isotherm: Auto/Manual; Temperature Alarm: LCD animation, LED flashlight, Audible alarm; Temperature Tracking: Yes; Digital Camera Resolution: 5MP; Digital Zoom: 2x, 4x.

Analysis SoftwarePC+APP
Gram654 g
Storage Capacity32GB Micro SD kart
Digital Zoom2x, 4x
LanguagesEN, FR, DE, IT, ES, SV, PL, CZ
Accuracy±2°C veya ±2% hangisi büyükse
Display Size3.5′′ IPS Dokunmatik (640×480)
On-Screen Analysis5 nokta/1 çizgi/3 dikdörtgen/3 daire
Image File FormatJPG
Display ModesTermal, Görünür ışık görüntüsü, Birleştirilmiş görüntü (T-Mix), PIP
Field of View56°(H) × 42°(V)
Power Source5200mAh çıkarılabilir Li-ion pil paketi (UT-M17)
Frame Rate≤9Hz
ProtectionIP54 & 2m düşme dayanımı
Infrared Resolution320×240
LED LightingAvailable
Laser Distance MeasurementAvailable
Laser PointerAvailable
FocusSabit odak
Pixel Size12μm
Battery Life≥4 saat (Wi-Fi kapalıyken)
Color PalettesWhite sıcak, Black sıcak, Kırmızı sıcak, Demir renk skalası, Yüksek kontrastlı gökkuşağı, Gökkuşağı, Lav
Digital Camera Resolution5MP
Voice RecordingAvailable
Spectral Response8~14μm
Temperature AlarmLCD animasyonu, LED el feneri, Sesli uyarı
Temperature TrackingAvailable
Temperature Range-40°C~400°C
Thermal Sensitivity (NETD)≤65mK
USB InterfaceType-C
Video File FormatAVI
Video RecordingAvailable
Wi-FiAvailable
Wi-Fi Live StreamingAvailable
Product Dimensions260mm×97mm×99mm
IsothermOtomatik/Manuel
