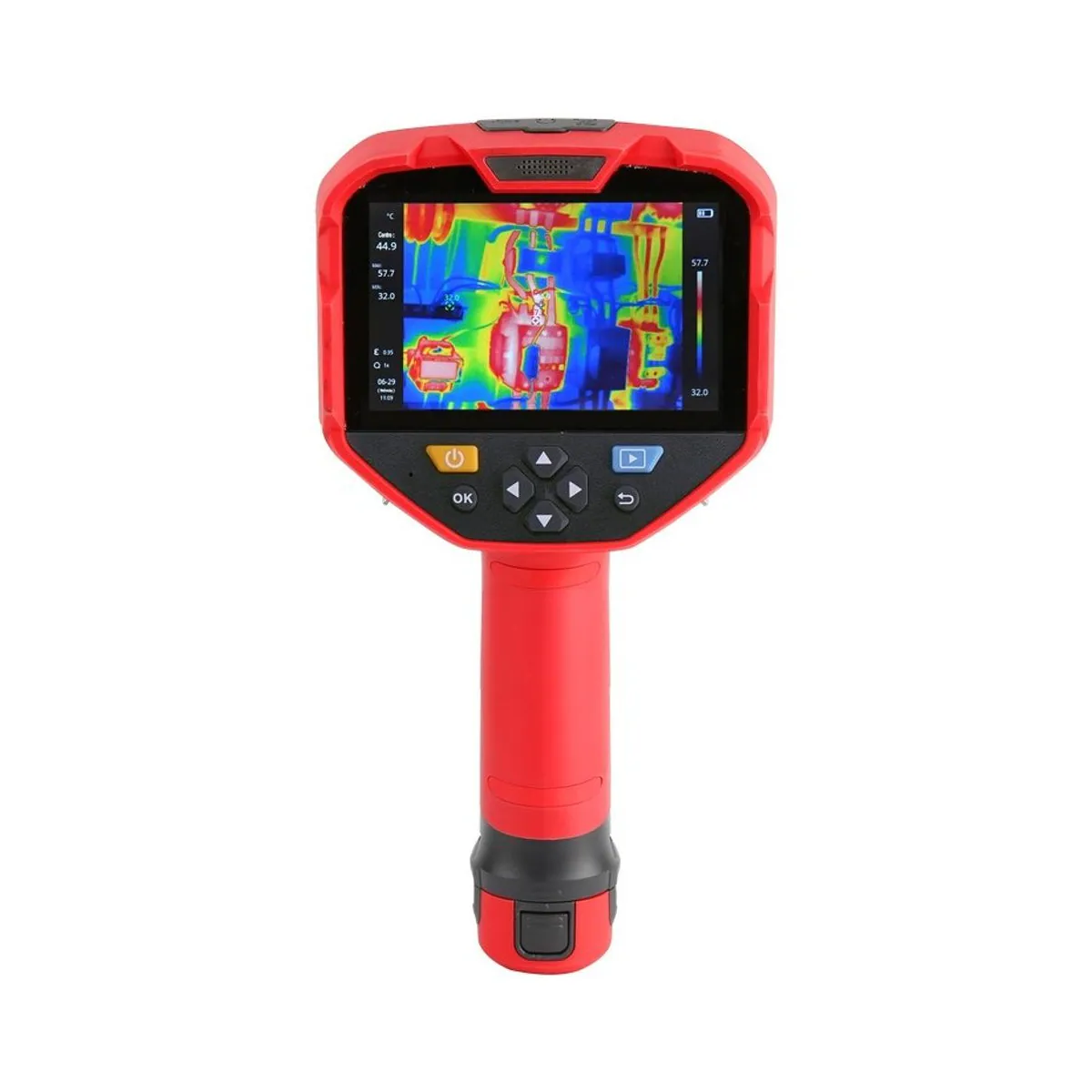

Unit UTi740H+ 384 x 288 (768 x 576 Super Resolution) Thermal Imaging Camera with 4.3 in Touchscreen
- Brand: Unit
- SKU: UTI740H+
- MPN: UTi740H+
- Price: 114204.20 TRY + VAT · incl. VAT 137045.04 TRY
- Availability: Made to order
- Thermal Cameras
- Selection guide: Thermal Cameras Selection Guide: Technical Criteria & Application Standards
Unit UTi740H+ is a manual-focus handheld thermal imaging camera with a 12 µm detector and ±1.5°C / ±1.5% accuracy; it is a separate model from the UTi740H. The 384 x 288 infrared resolution rises to 768 x 576 with super resolution. The 4.3 in LCD touchscreen has 800 × 480 resolution; frame rate is ≤30 Hz, field of view 29° × 21.5° and temperature range -20°C to 650°C. Accuracy is ±1.5°C or ±1.5% from 0°C to 650°C and ±2°C or ±2% from -10°C to 0°C, whichever is greater. Focus is manual. It provides a 5 MP camera, 1x to 6x digital zoom, video and voice recording, text and voice annotation, 16-point/line/rectangle/circle analysis and Wi-Fi live streaming. The 5200 mAh detachable battery pack (UT-M17) runs for about 4 hours; the camera is rated IP54 and 2 m drop proof.
| Infrared Resolution | 384 x 288 |
|---|---|
| Display Size | 4.3 inç LCD dokunmatik (800 × 480) |
| Pixel Size | 12 µm |
| Frame Rate | ≤30 Hz |
| Focus | Manuel odak |
| Field of View | 29° (yatay) × 21.5° (dikey) |
| Temperature Range | -20°C ~ 650°C |
| Accuracy | 0°C ~ 650°C: ±1.5°C veya ±%1.5; -10°C ~ 0°C: ±2°C veya ±%2 (hangisi büyükse) |
| Display Modes | Termal, görünür ışık, birleştirilmiş görüntü (Fusion), PIP |
| On-Screen Analysis | 16 nokta / 16 çizgi / 16 dikdörtgen / 16 daire |
| Isotherm | Otomatik / Manuel |
| Temperature Alarm | LCD animasyonu ve sesli uyarı |
| Temperature Tracking | Var (en yüksek / en düşük) |
| Digital Camera Resolution | 5 MP |
| Digital Zoom | 1x ~ 6x |
| Video Recording | Available |
| Voice Recording | Available |
| Wi-Fi | Available |
| Wi-Fi Live Streaming | Available |
| Analysis Software | PC + APP |
| Power Source | 5200 mAh çıkarılabilir Li-ion pil (UT-M17) |
| Battery Life | Yaklaşık 4 saat (Wi-Fi kapalıyken) |
| USB Interface | Type-C |
| Storage Capacity | Dahili 8 GB ve 32 GB Micro SD kart |
| Image File Format | Radyometrik JPEG |
| Video File Format | MP4 ve UIR |
| IP Rating | IP54 |
| Drop Resistance | 2 m |
| Certifications | CE, FCC, RoHS |
| Languages | EN, FR, DE, IT, ES, SV, PL, CS |
| Standard Accessories | Type-C USB kablosu, SD kart, 2 adet Li-ion pil paketi, el askısı, hızlı başlangıç kılavuzu, belge indirme kılavuzu, alet çantası |
| Optional Accessories | UT-M17 Li-ion pil paketi |
| Super Resolution | 768 x 576 |
| Annotation | Metin ve ses |
