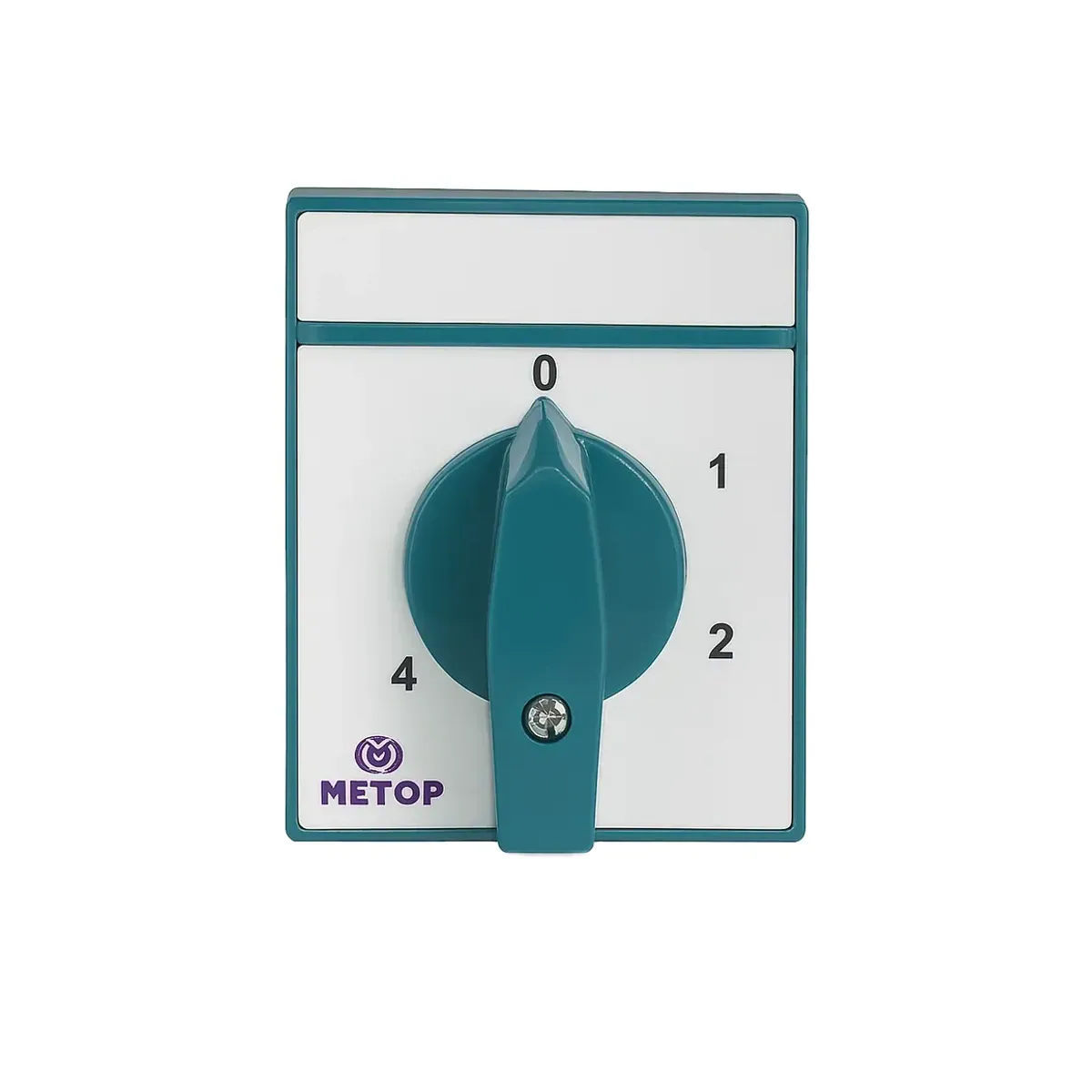

Metop 125A Three-Phase 4-Step Switch
- Brand: Metop
- SKU: MT052 - 125A
- Price: 6013.84 TRY + VAT · incl. VAT 7216.61 TRY
- Availability: Made to order
- Standard Step Switches
- Metop Standard Step Switches
- Selection guide: Standard Step Switches Selection Guide
Metop 125A Three-Phase 4-Step Switch. Standard Step Switches are used for transformer tap, heater, fan speed and welding machine selections. Technical values: Current 125A, Phase Type 3-Phase, Cam Switch Step Count 4. Stock code: MT052 - 125A.
| Current | 125 A |
|---|---|
| Number of Poles | 3P |
| Cam Switch Position Count | 4 Kademe |
| Rated Insulation Voltage (Ui) | 660 V |
| Ambient Temperature | -25... +50 °C |
| Front Panel Protection Rating | IP55 |
| Standards | EN 60947-3, VDE0660, TS EN 60947-3 |
| Switch Positions | 0-1-2-3-4 |
| Housing Size | M4 |
| Length (L) | 326 mm |
| Front Plate Size (A x B) | 85 x 104 mm |
| Nominal Thermal Current (Ith) | 160 A |
| AC-1 / AC-21 Power (Resistive Circuits) | 3x220 V~: 33 kW; 3x380 V~: 59 kW; 3x500 V~: 79 kW; 3x660 V~: 100 kW (30 on-off/h) |
| AC-3 / AC-23 Power (Three-Phase Motors) | 3x220 V~: 25 kW; 3x380 V~: 40 kW; 3x500 V~: 59 kW; 3x660 V~: 75 kW (30 on-off/h) |
| Terminal Bolt Size | M8 |
| Conductor Cross-Section | 25/35 mm² (AWG 6) |
| Fuse Current | 160 A (Ieff 10 kA); 160 A (Ieff 40 kA) |
