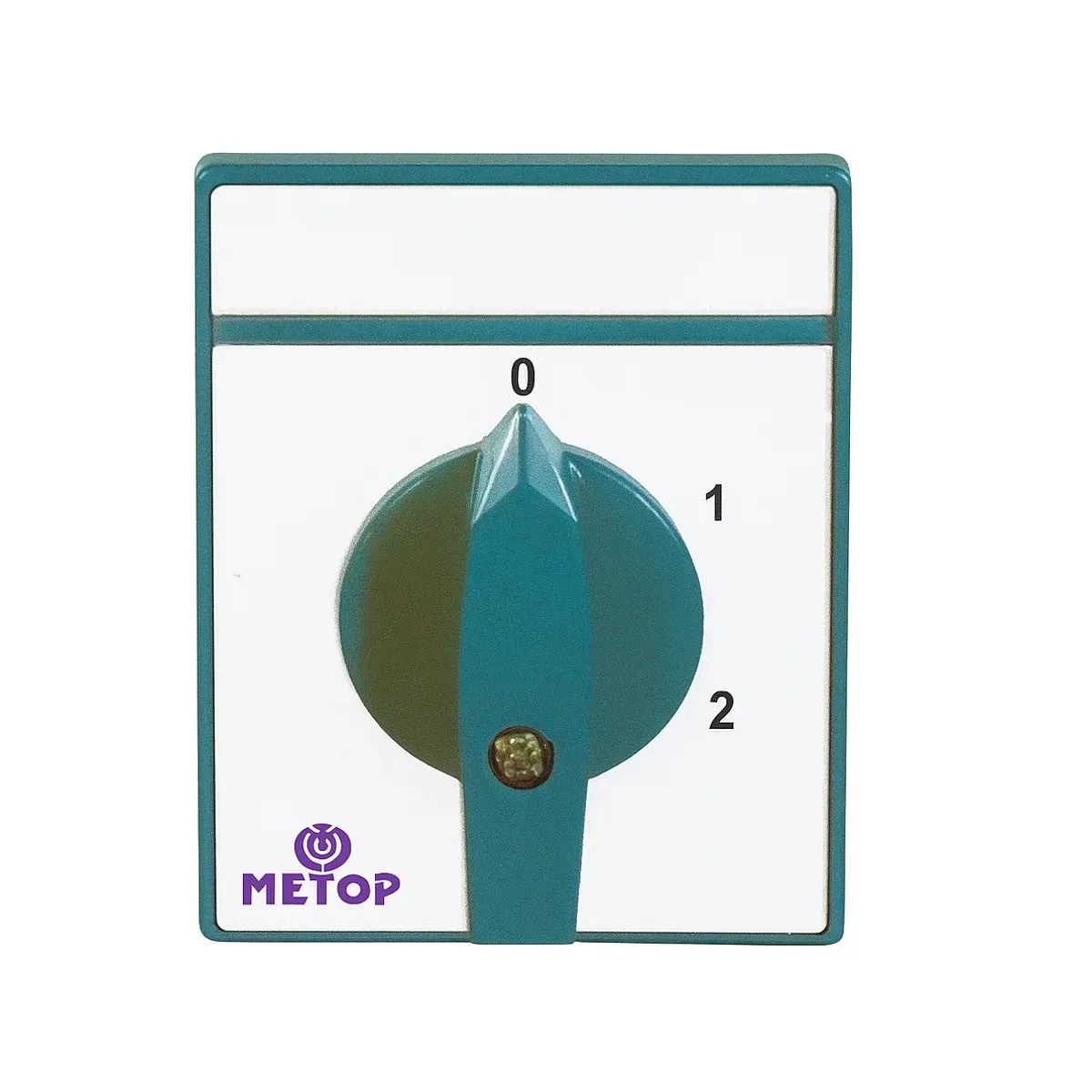

Metop 63A Single-Phase 2-Step Switch
- Brand: Metop
- SKU: MT023 - 63A
- Price: 694.40 TRY + VAT · incl. VAT 833.28 TRY
- Availability: In stock
- Standard Step Switches
- Metop Standard Step Switches
- Selection guide: Standard Step Switches Selection Guide
Metop 63A Single-Phase 2-Step Switch. Standard Step Switches are used for transformer tap, heater, fan speed and welding machine selections. Technical values: Current 63A, Phase Type 1-Phase, Cam Switch Step Count 2. Stock code: MT023 - 63A.
| Current | 63 A |
|---|---|
| Number of Poles | 1P |
| Cam Switch Position Count | 2 Kademe |
| Rated Insulation Voltage (Ui) | 660 V |
| Ambient Temperature | -25... +50 °C |
| Front Panel Protection Rating | IP55 |
| Standards | EN 60947-3, VDE0660, TS EN 60947-3 |
| Switch Positions | 0-1-2 |
| Housing Size | M3 |
| Length (L) | 53.1 mm |
| Front Plate Size (A x B) | 85 x 104 mm |
| Housing Diameter | Ø80.8 mm |
| Nominal Thermal Current (Ith) | 75 A |
| AC-3 / AC-23 Power (Single-Phase Motors) | 110 V~: 5.3 kW; 220 V~: 10 kW; 380 V~: 17 kW (30 on-off/h) |
| Terminal Bolt Size | M6 |
| Conductor Cross-Section | 10/16 mm² (AWG 10) |
| Nominal Breaking Capacity (10 Ie x 1.1 Ue) | 110 V~: 76000 VA; 220 V~: 130000 VA; 380 V~: 180000 VA; 660 V~: 72000 VA |
| Fuse Current | 100 A (Ieff 10 kA); 100 A (Ieff 40 kA) |
