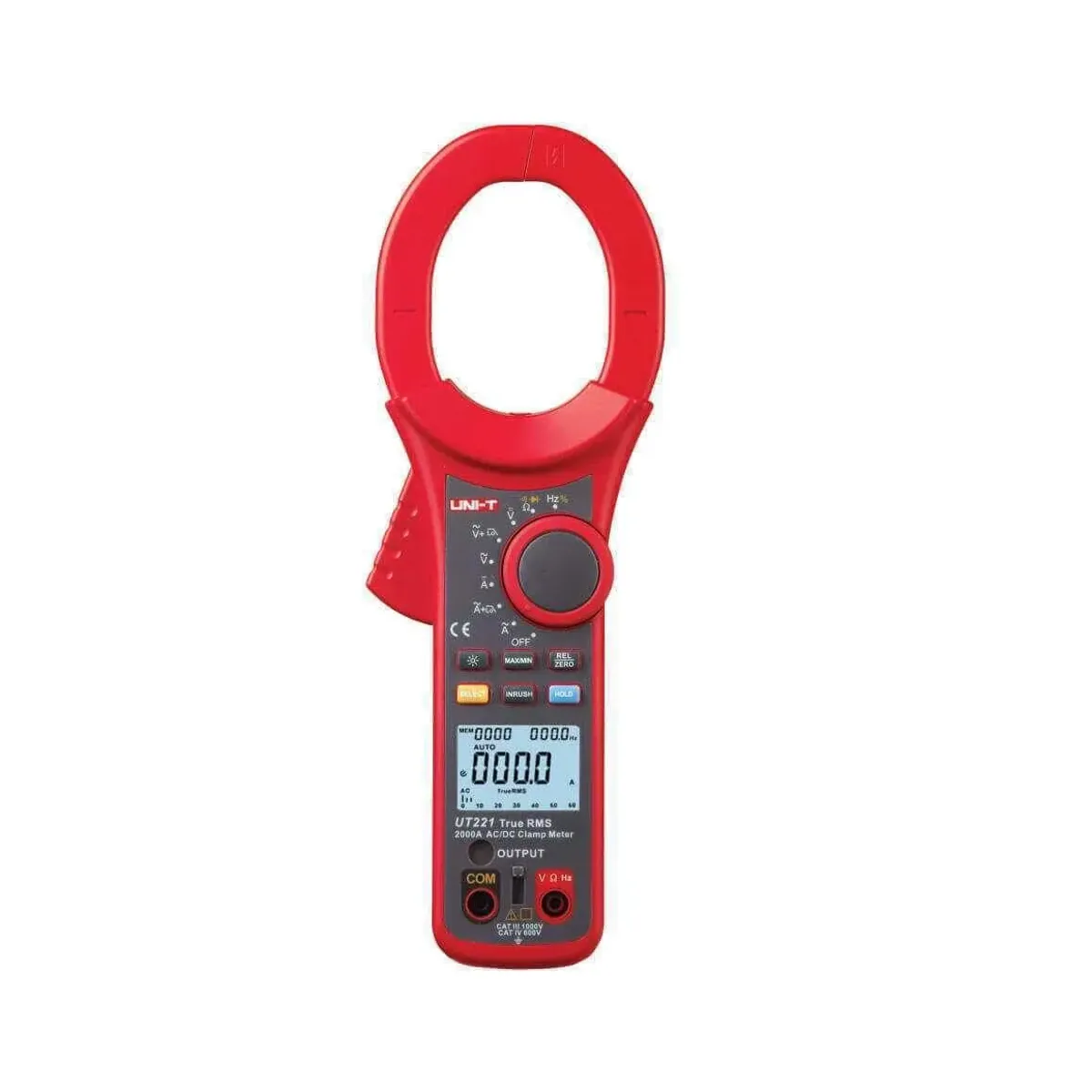

Unit UT221 AC/DC 2000A Digital Clamp Meter
- Brand: Unit
- SKU: UT221
- MPN: UT221
- Price: 5116.35 TRY + VAT · incl. VAT 6139.62 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT221 AC/DC 2000A Digital Clamp Meter, a clamp meter model of the UNI-T UT220 series. It has a 6000-count display. Measurement functions: DC voltage (1000 V), AC voltage (750 V), DC current (2000 A), AC current (2000 A), resistance (66 MΩ), frequency (20 MHz). Jaw opening 63 mm. Other features: true RMS (AC voltage/current), duty cycle measurement (10% – 90%), audible continuity test, low-pass filter (LPF), inrush current measurement (AC current), relative (REL) measurement, MIN / I-OUT function, full-symbol display, low battery indicator, auto range, diode test, data hold, MAX. Power source: 9 V battery (6F22). Box contents: test probes, output cable.
| AC Current Measurement | 2000 A · ±(%2,5+5) |
|---|---|
| AC Voltage Measurement | 750 V · ±(%1,2+5) |
| Low-Pass Filter | Available |
| Analog Bar Graph | 66 segment |
| Gram | 726 g |
| Relative Measurement | Available |
| DC Current Measurement | 2000 A · ±(%2,5+5) |
| DCV Input Impedance | ≥10 MΩ |
| DC Voltage Measurement | 1000 V · ±(%0,8+1) |
| Resistance Measurement | 66 MΩ · ±(%1+2) |
| Low Battery Indication | Available |
| Additional Functions | True RMS (AC gerilim/akım), görev döngüsü ölçümü (%10 – %90), sesli süreklilik testi, düşük geçiren filtre (LPF), kalkış (inrush) akımı ölçümü (AC akım), bağıl (REL) ölçüm, MIN / I-OUT fonksiyonu, tam simge ekran, düşük pil göstergesi, otomatik kademe, diyot testi, veri tutma, MAX |
| Display Size | 43 mm × 30 mm |
| Display Count | 6000 |
| Frequency Measurement | 20 MHz · ±(%0,1+3) |
| Duty Cycle Measurement | 10%~90% |
| Power Source | 9 V pil (6F22) |
| Inrush Current Measurement | AC akım |
| Auto Range and Diode Test | Available |
| Standard Accessories | Test probları, çıkış kablosu |
| Continuity Test | Available |
| Full Symbol Display | Available |
| True RMS | Available |
| Data Hold and MAX | Available |
| Jaw Opening | 63 mm |
| Product Dimensions | 298 mm × 107 mm × 47 mm |
